Software: SolidWorks 2023 – Student Edition
Modeller: Vesa Lampinen
Vinyl record: discogs.com

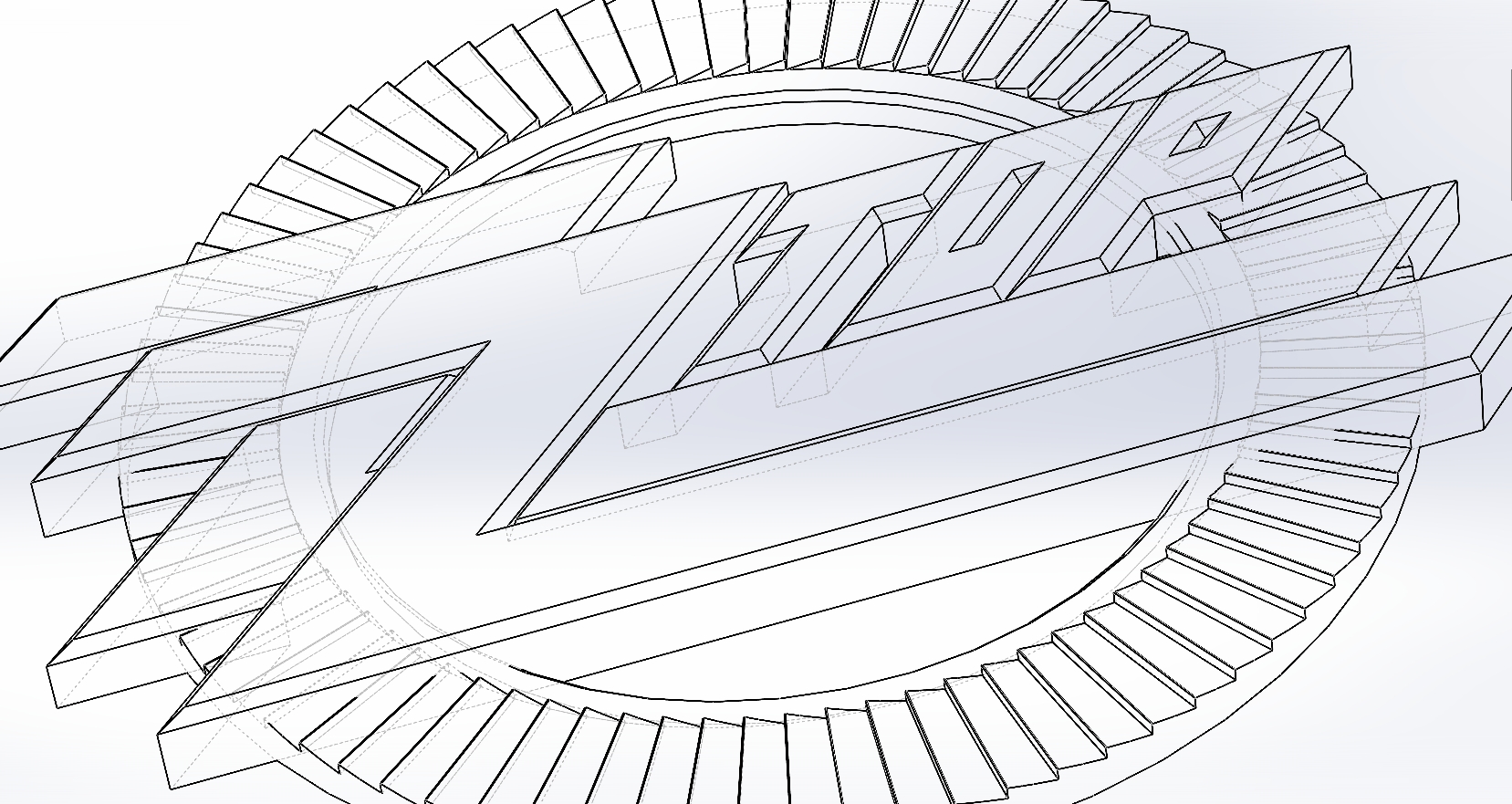

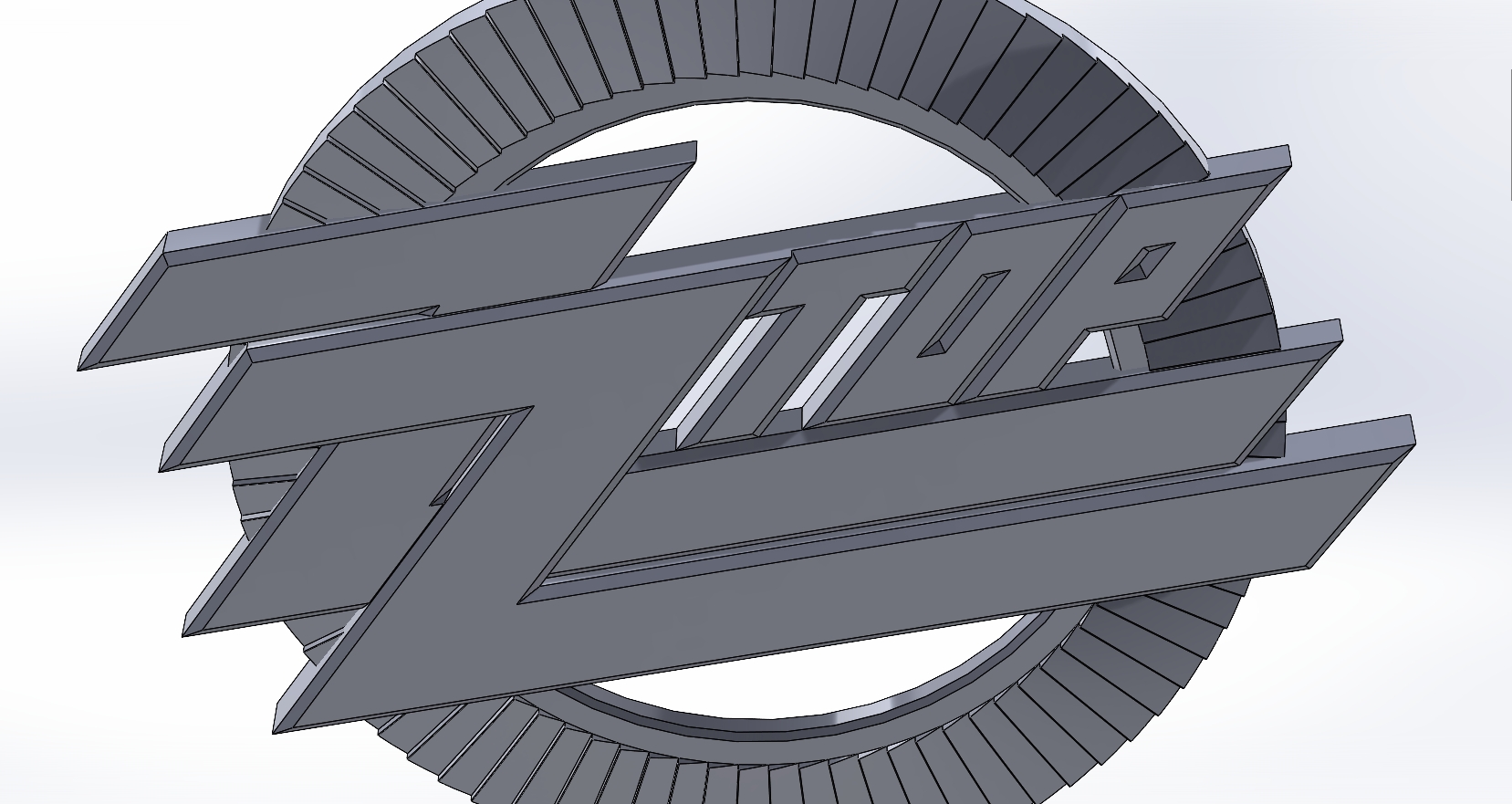

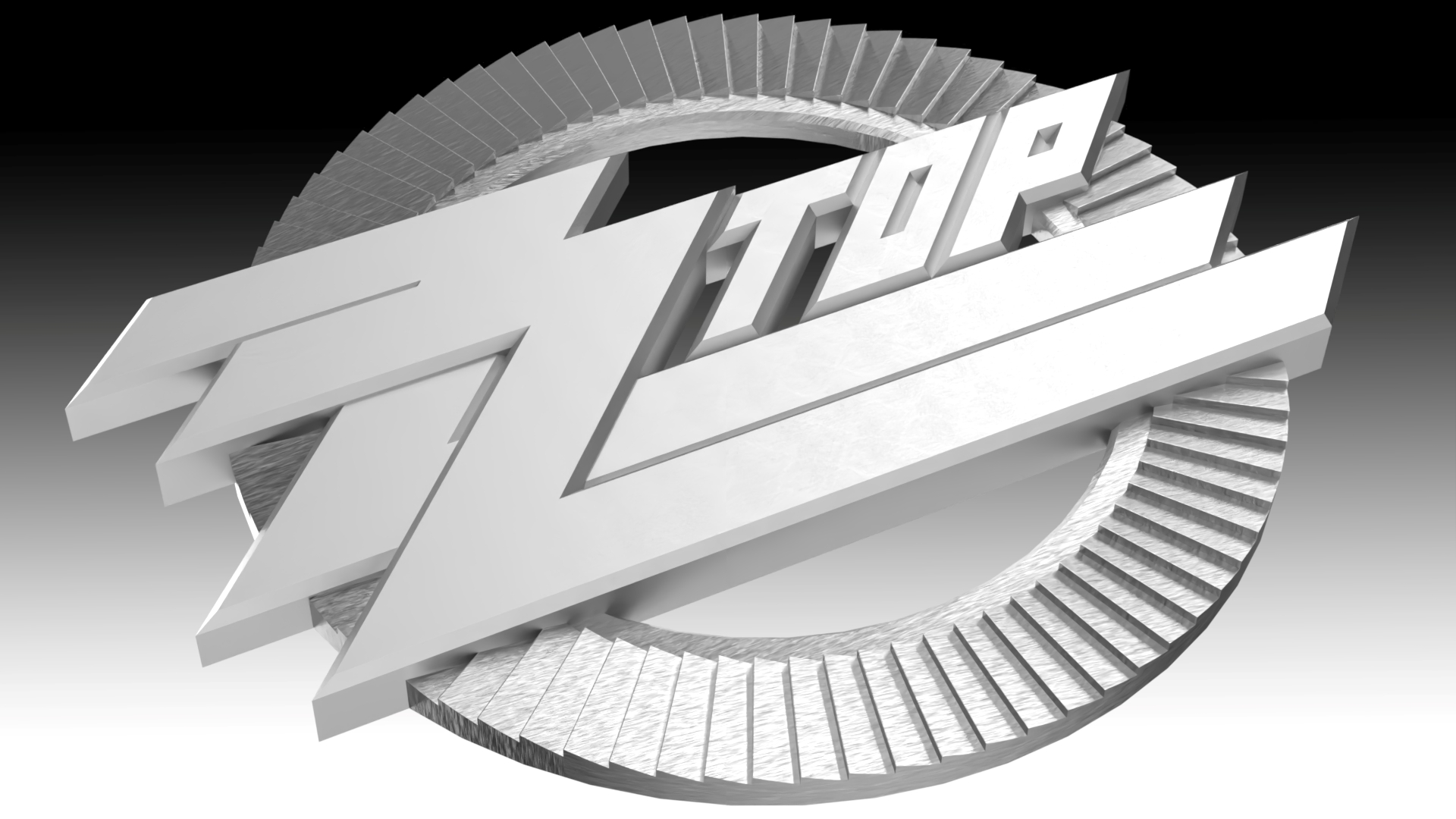

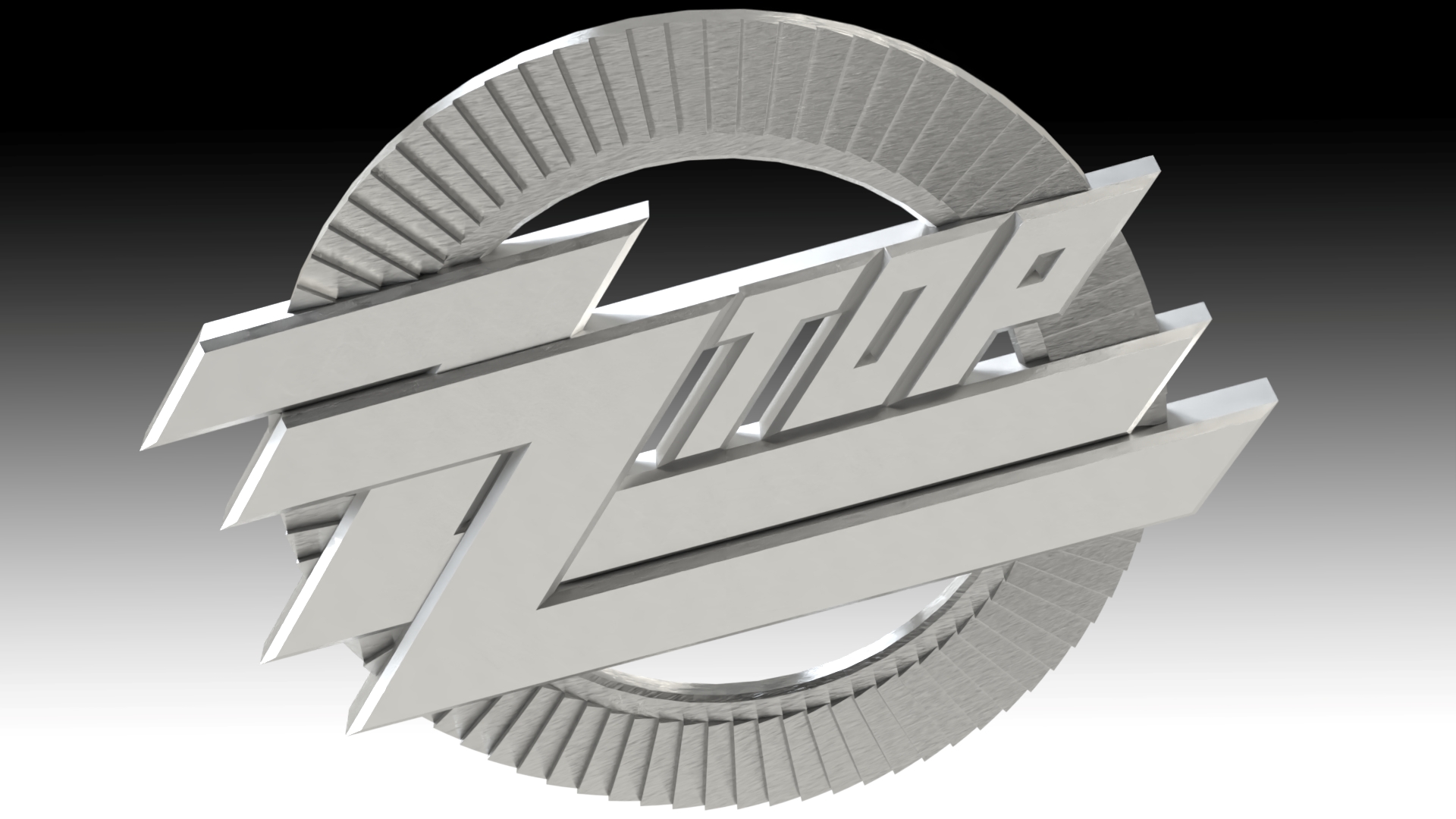

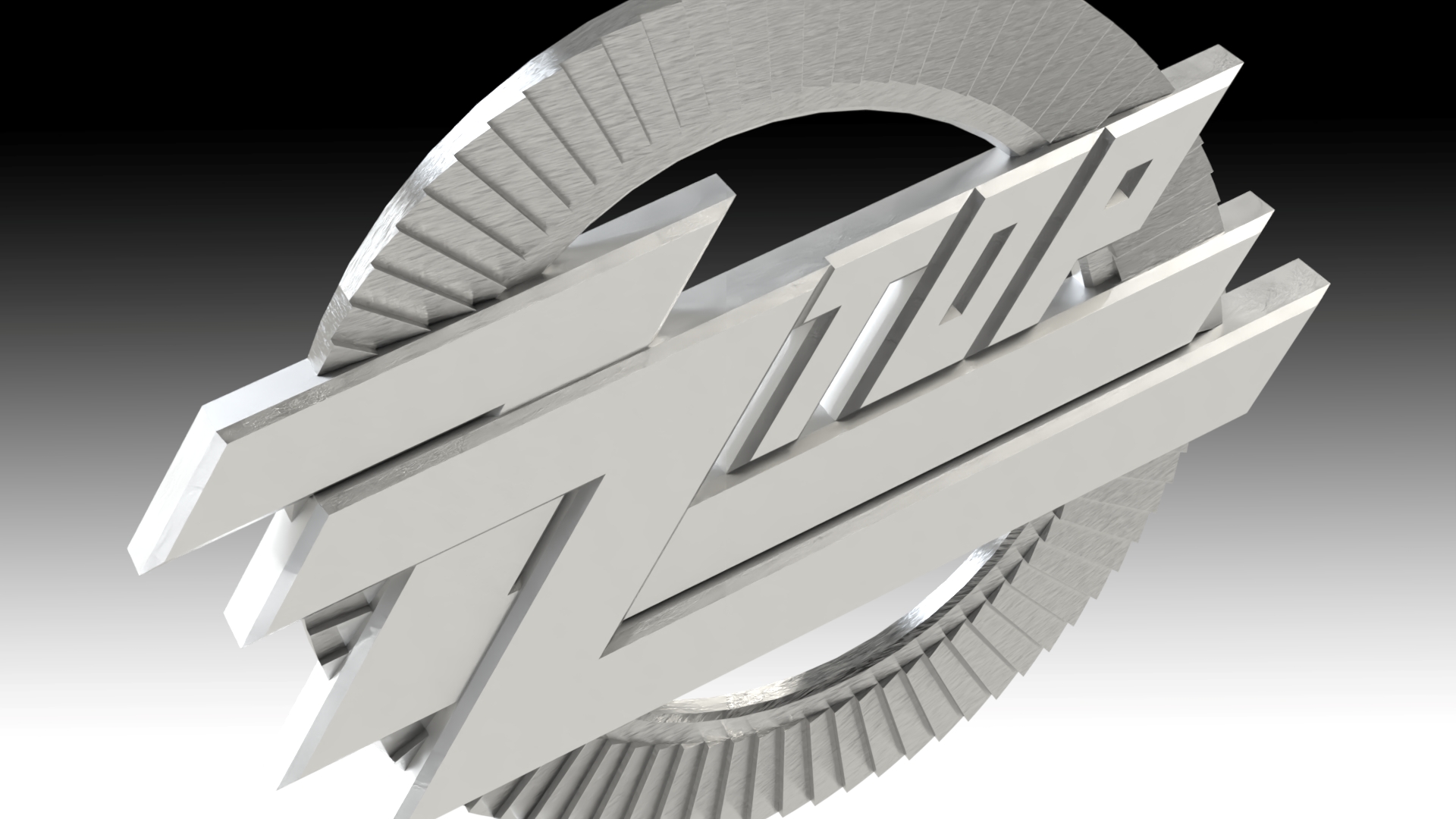

This logo was modelled according the cover art of a vinyl record. First, the cover was photographed and edited to a bitmap image. Since the logo was hand drawn, a lock washer wasn’t precisely done. Parts were assembled against the rules but the goal was to 3D-print the logo.
The assembly consists of 2 different parts.
