Software: SolidWorks 2023 – Student Edition
Modeller: Vesa Lampinen

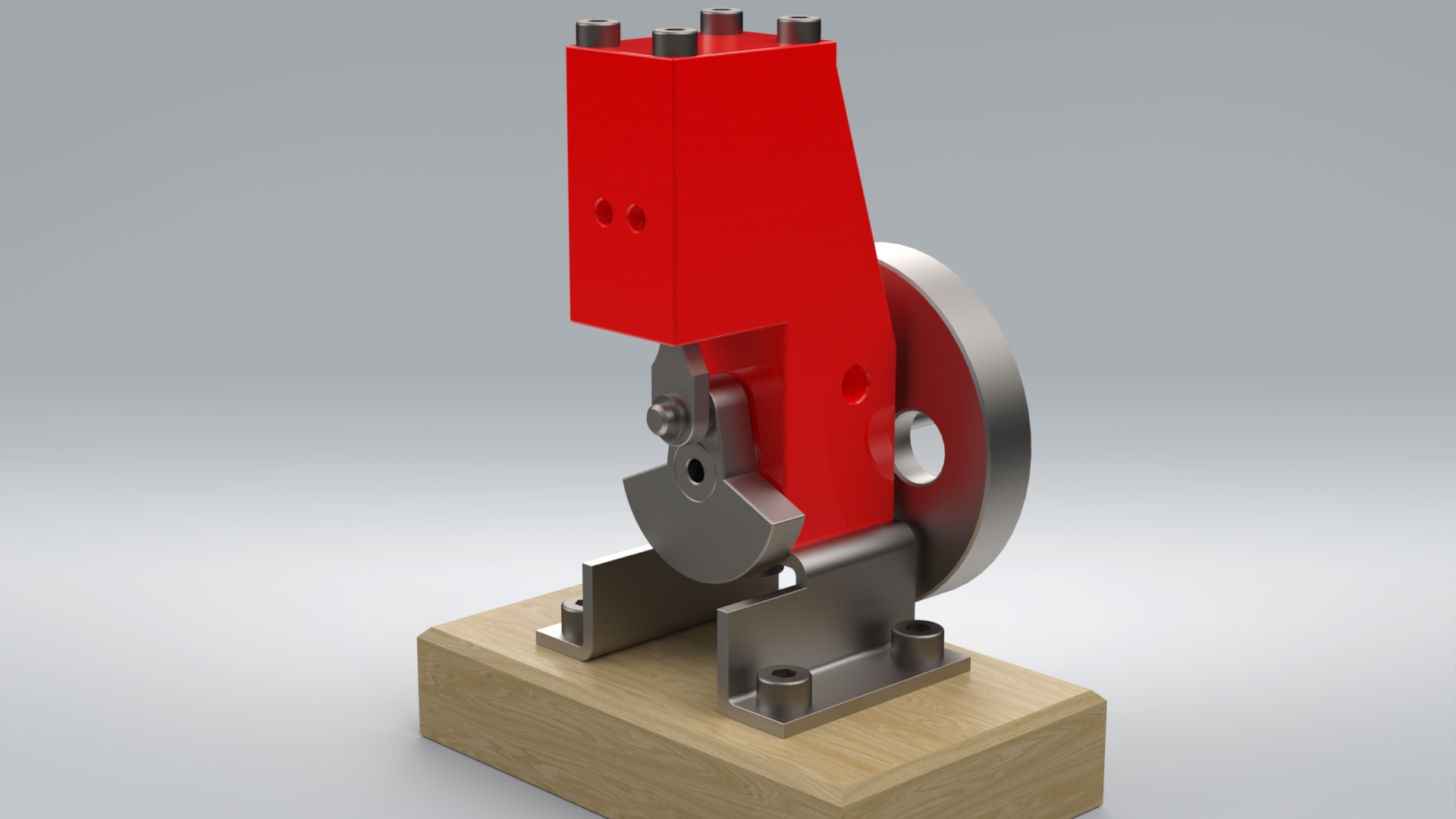

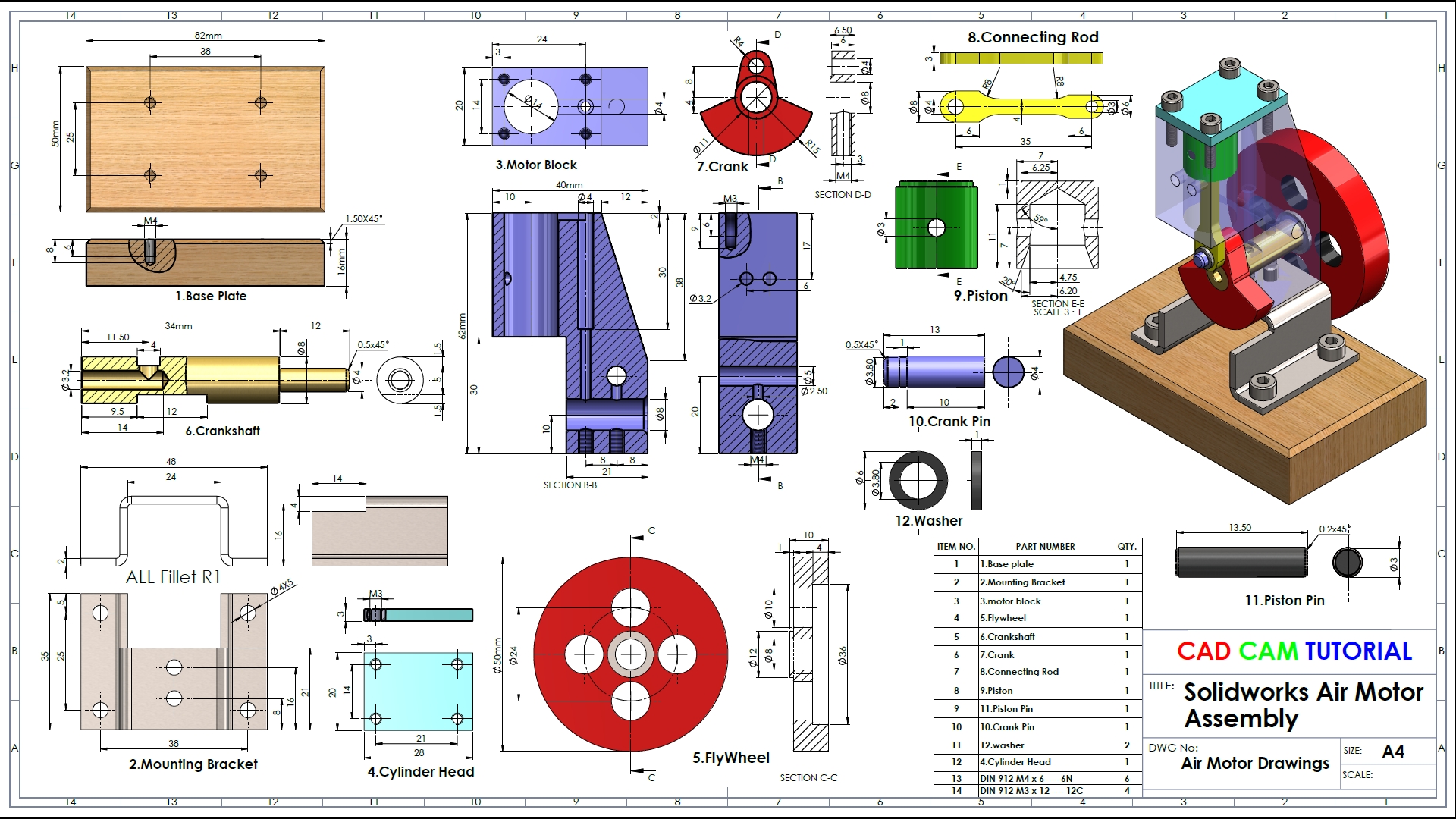

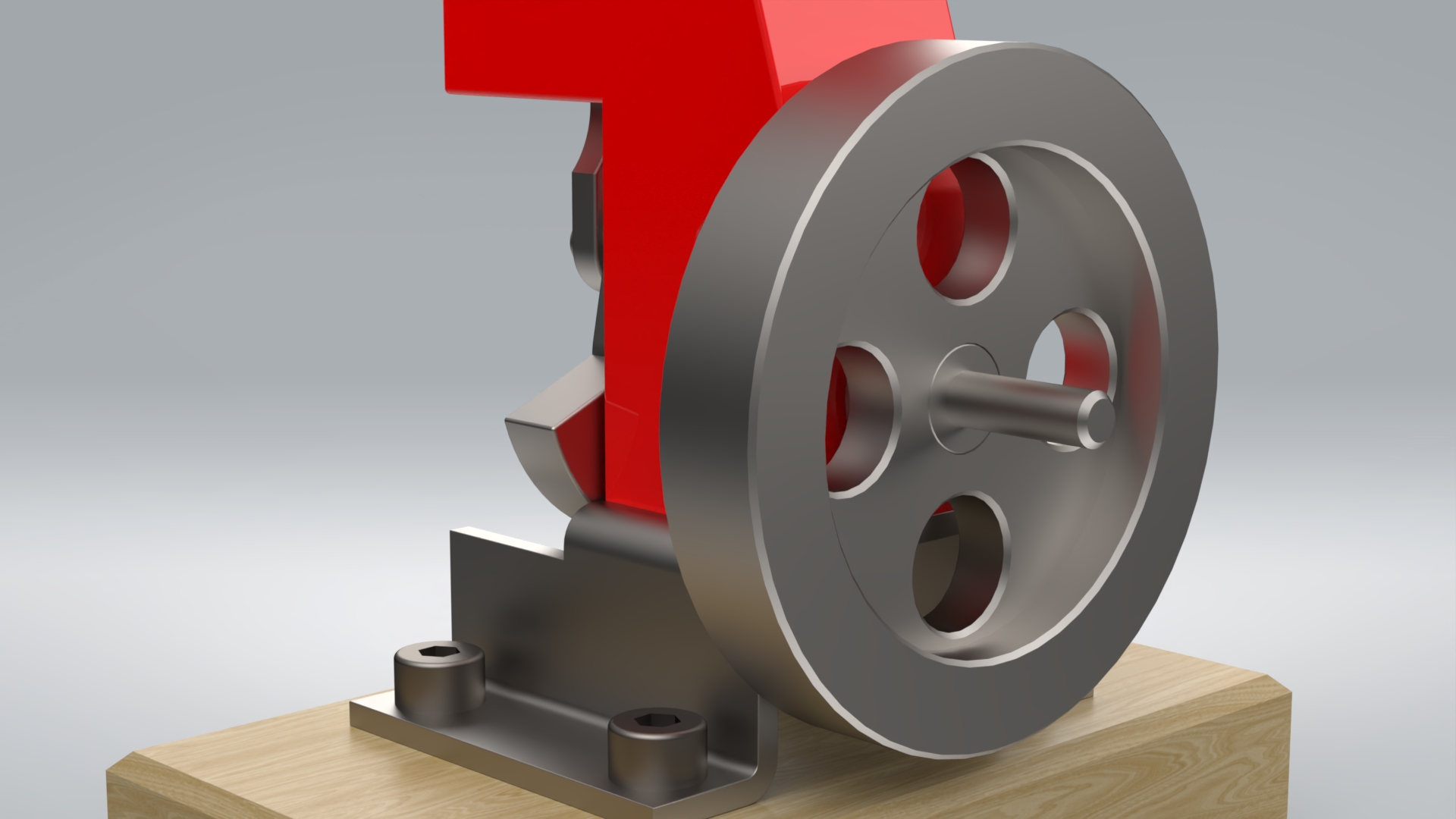

This assembly was found via Google image search. This was somewhat challenging modelling exercise. First of all, some dimensions were missing. Hexagon socket head cap screws weren’t modelled in the technical drawing. One screw that was supposed to be located in a crank, had to be done without the cap. Other thing was to assemble parts in a correct order. Nevertheless, when a flywheel is rotated, the air motor works like it should.
The assembly consists of 15 different parts.
