Software: SolidWorks 2023 – Student Edition
Modeller: Vesa Lampinen

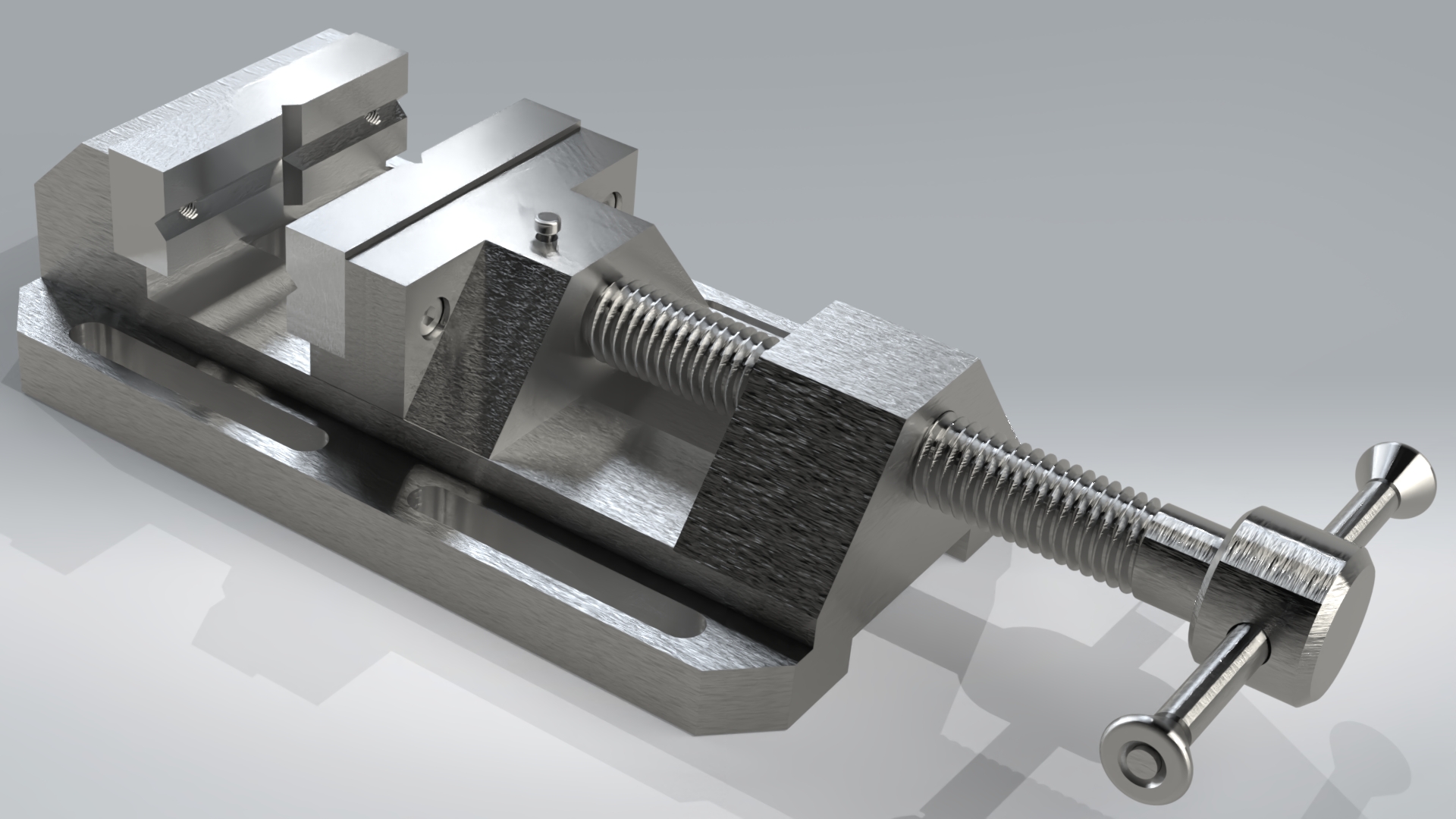

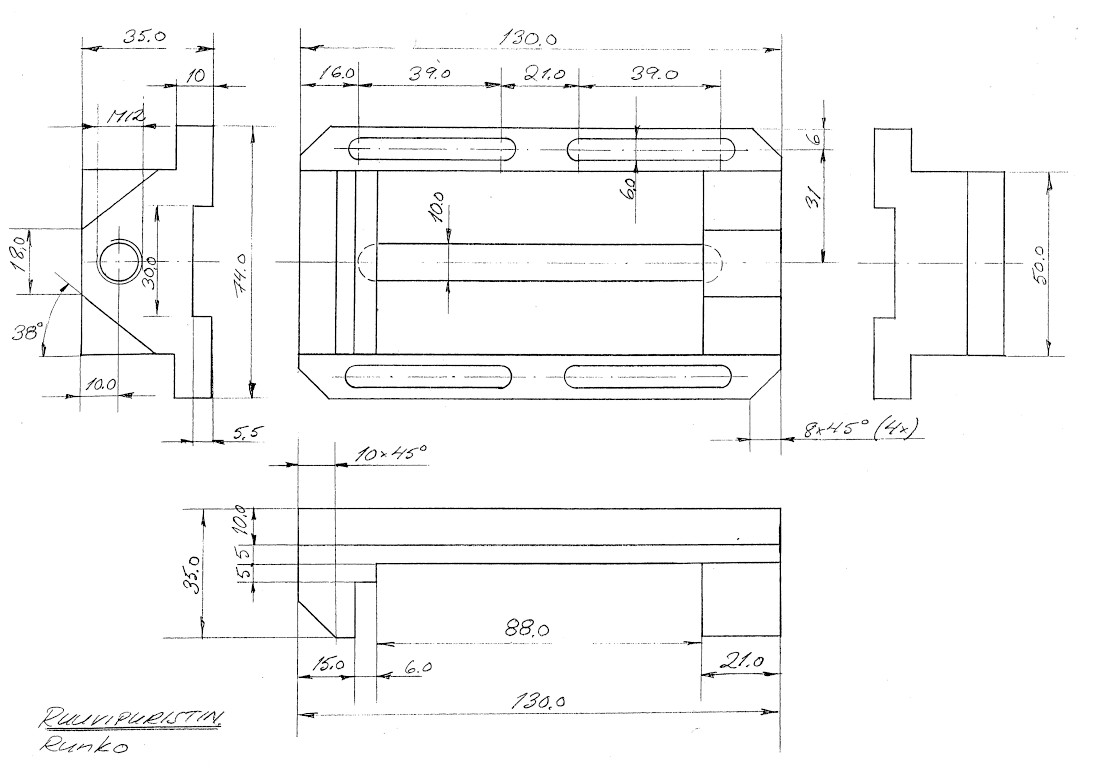

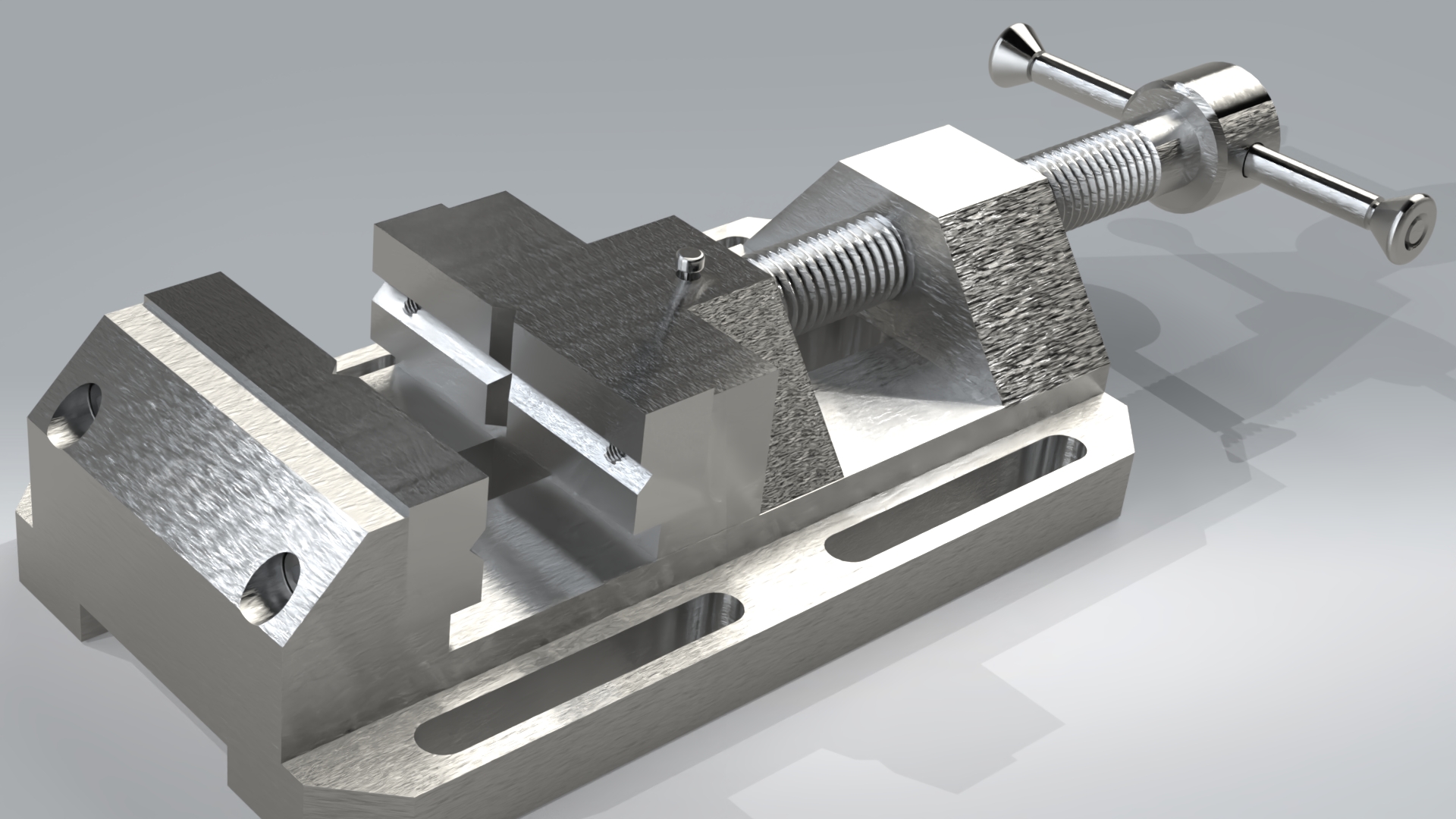

This assembly was modelled based on a vocational school’s technical drawing. So, originally this was a schoolwork that was done by students specializing in an machining.
“Ruuvipuristin” is a Finnish word for a machine vice.

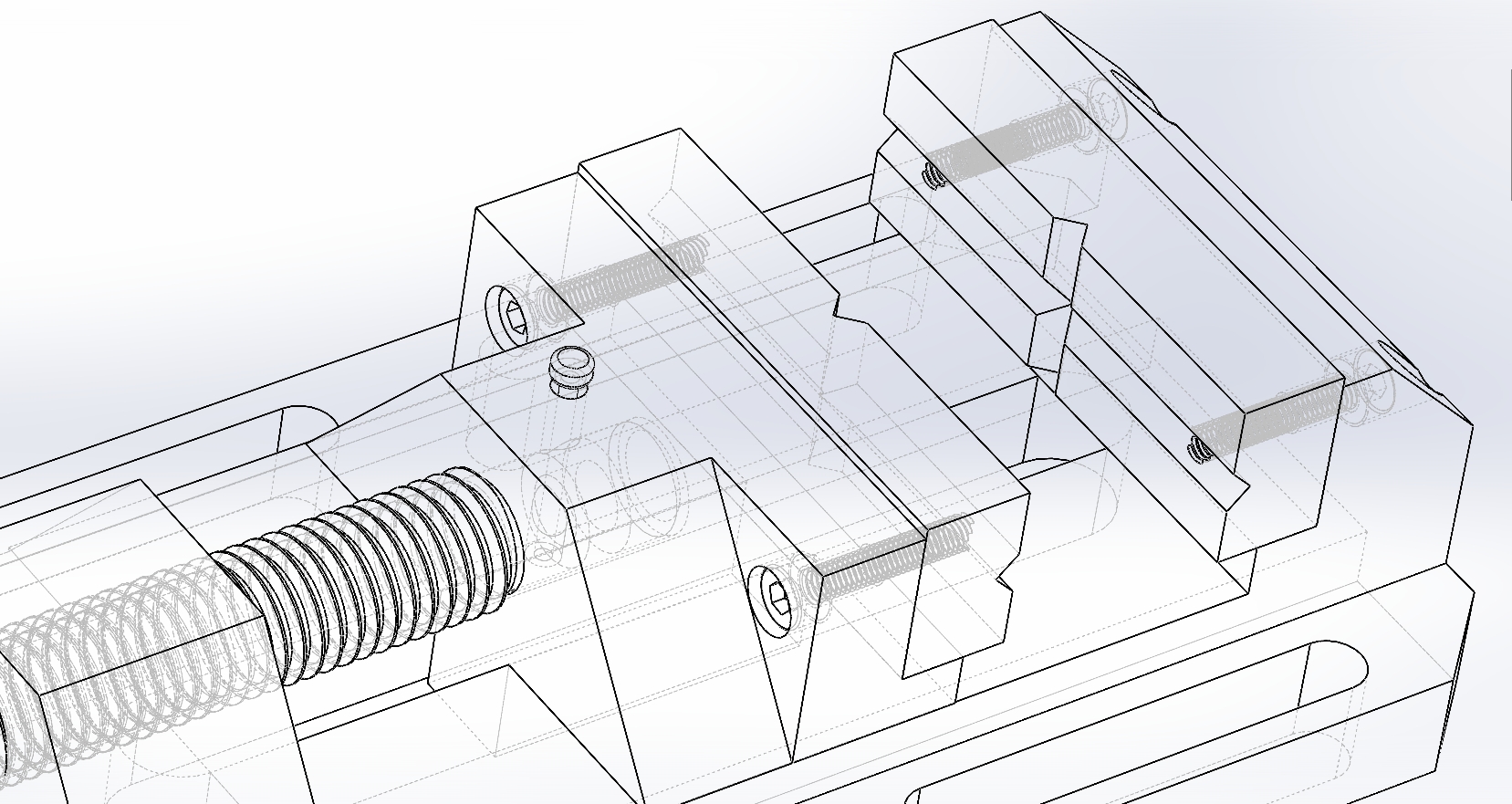

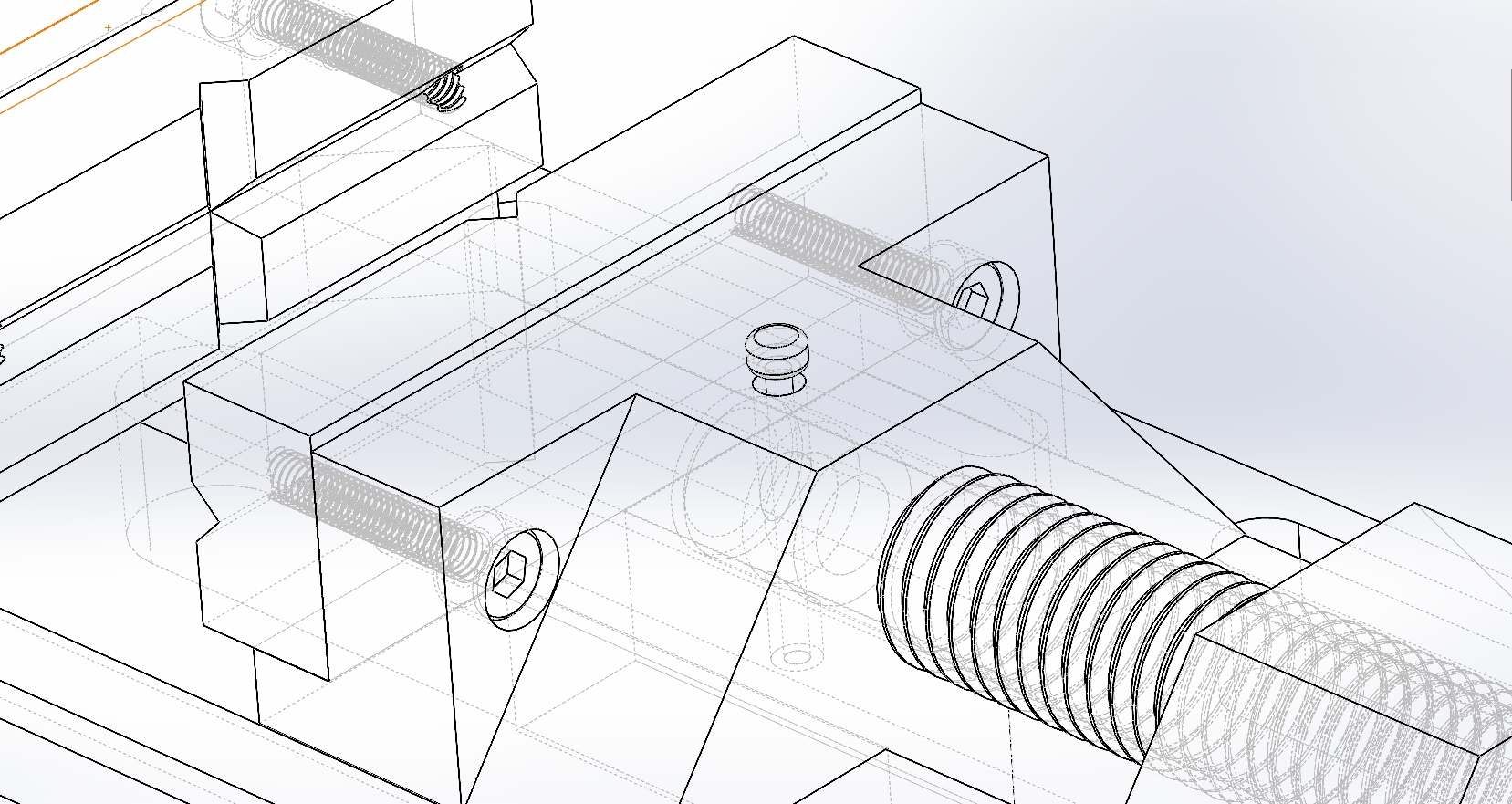

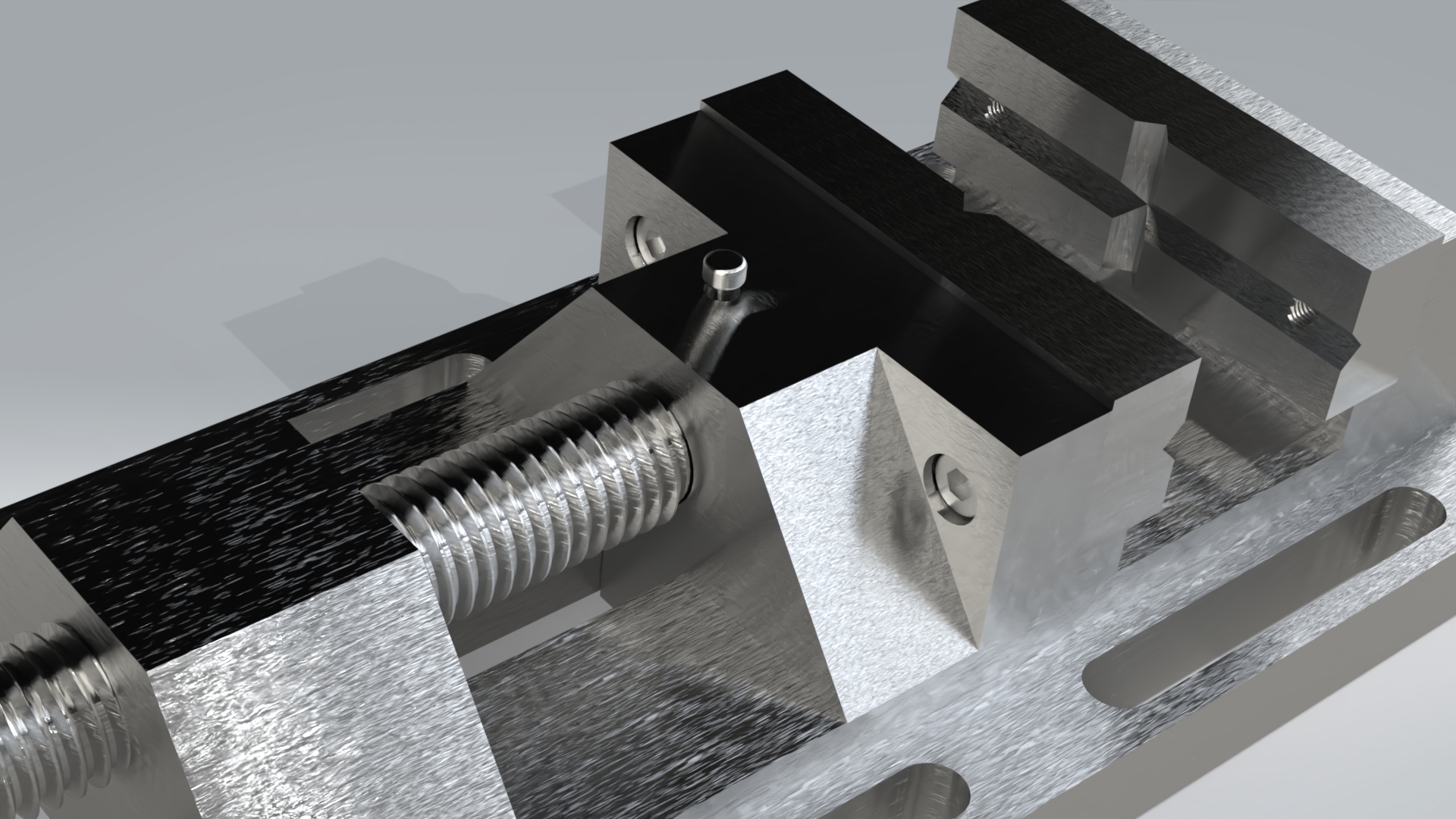

The technical drawing doesn’t describe the screws itself, so those are modelled according to the specifications of a hexagonal socket head cap screw (DIN 912).

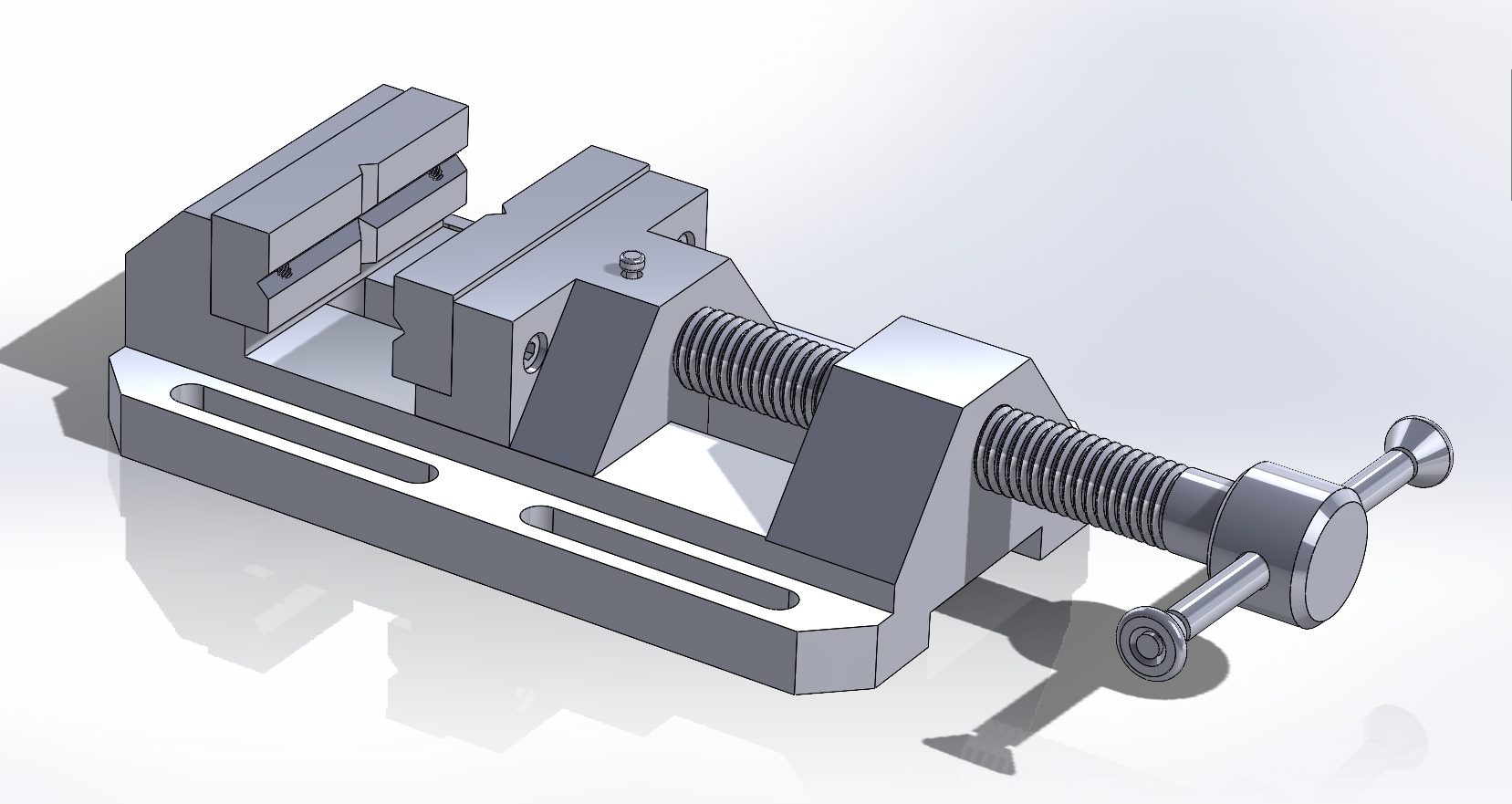

The assembly consists of 8 different parts.
