Software: FreeCAD 1.1.0
Modeller: Vesa Lampinen
Source: Inventor Wizard

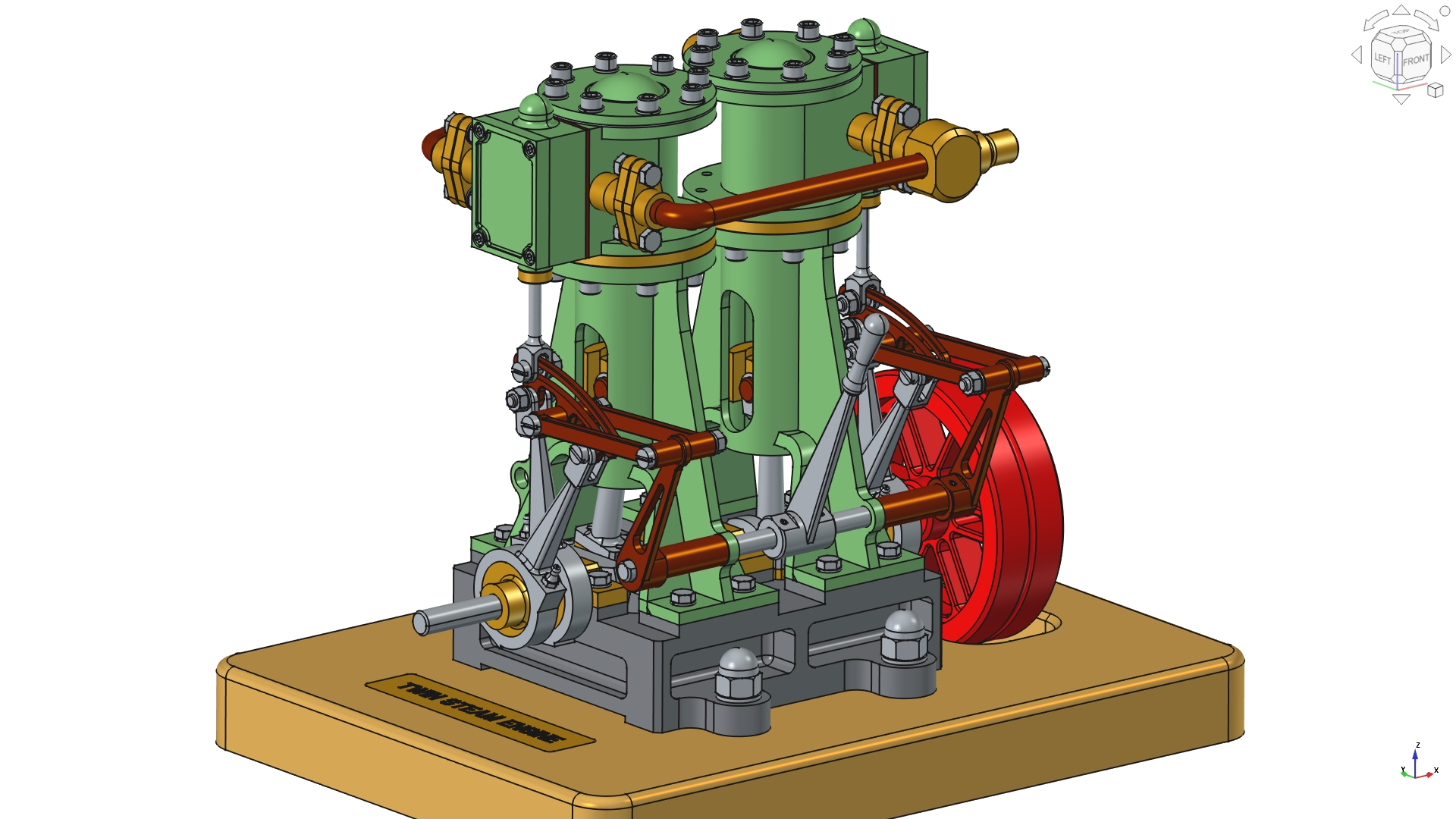

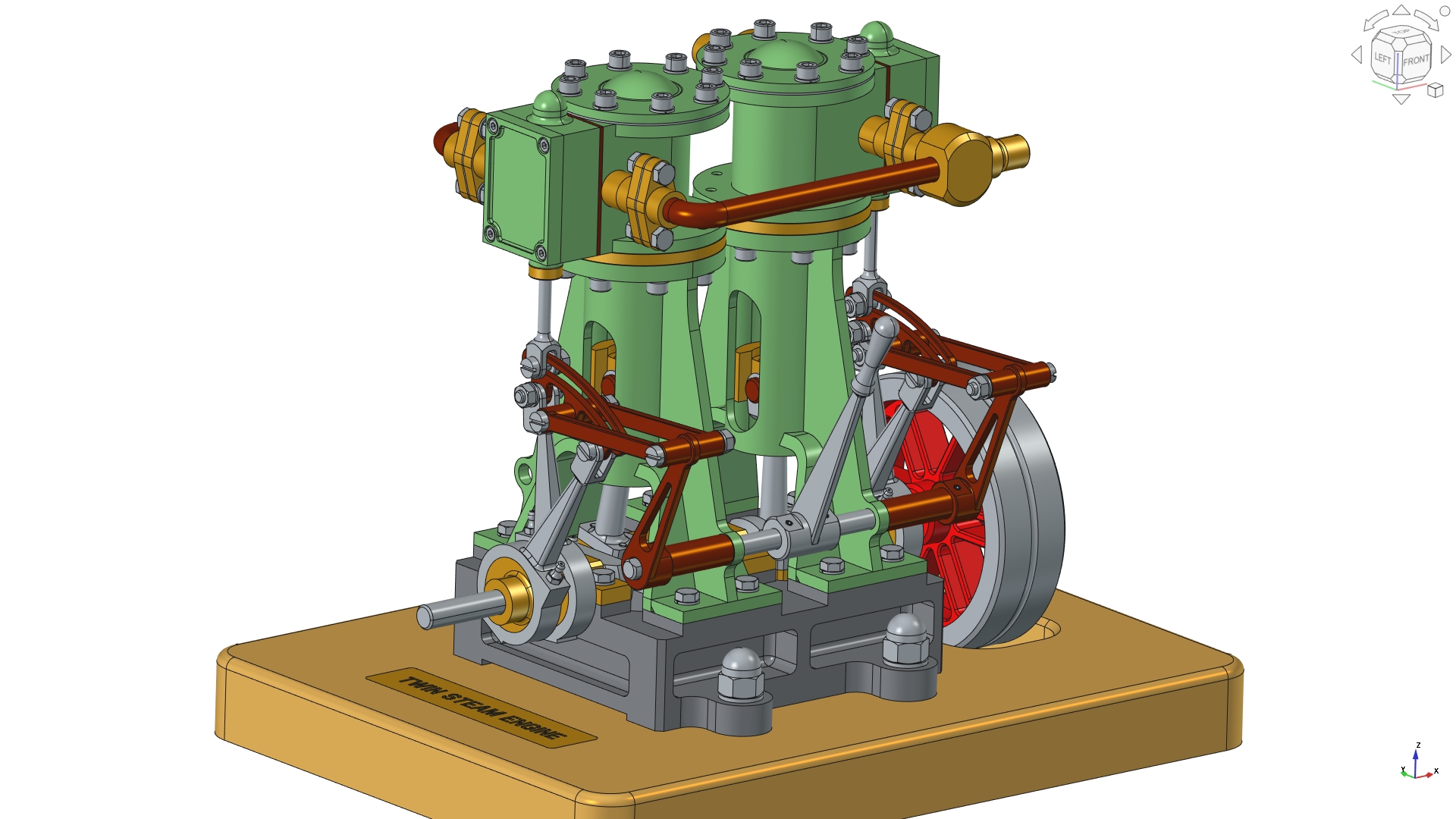

This assembly took some time to finnish. Modelling all the needed parts was one thing but assembling them together was the trickiest part. FreeCAD was just updated to a version 1.1.0 and that allowed to do some things better than with a previous version. Still, it rather easy to break the assembly just by moving some movable part. So… save the file and save it often. 🙂
The assembly consists of 16 subassemblies and 75 different parts.
