Software: FreeCAD 1.0.2
Modeller: Vesa Lampinen

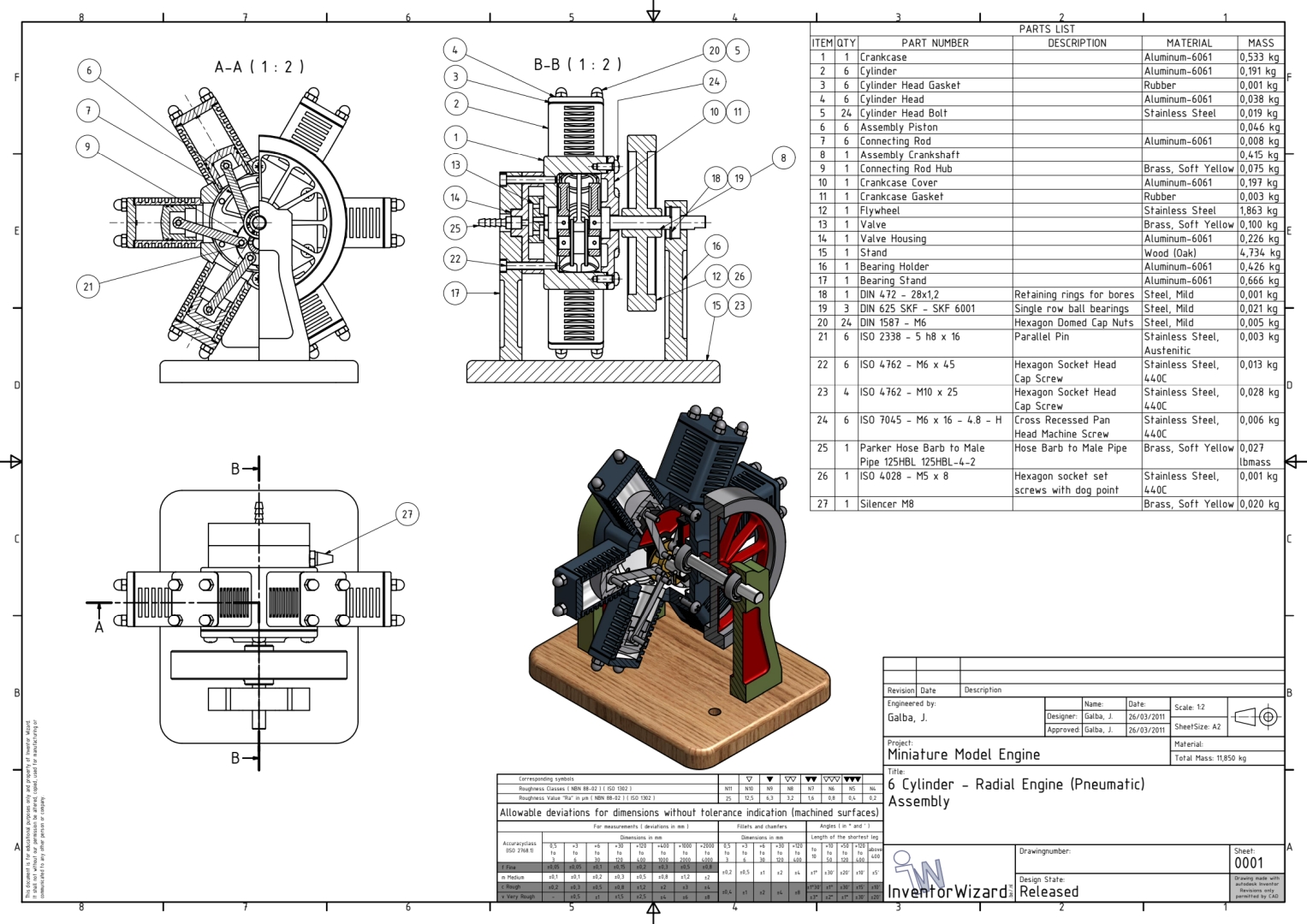

Source: Inventor Wizard

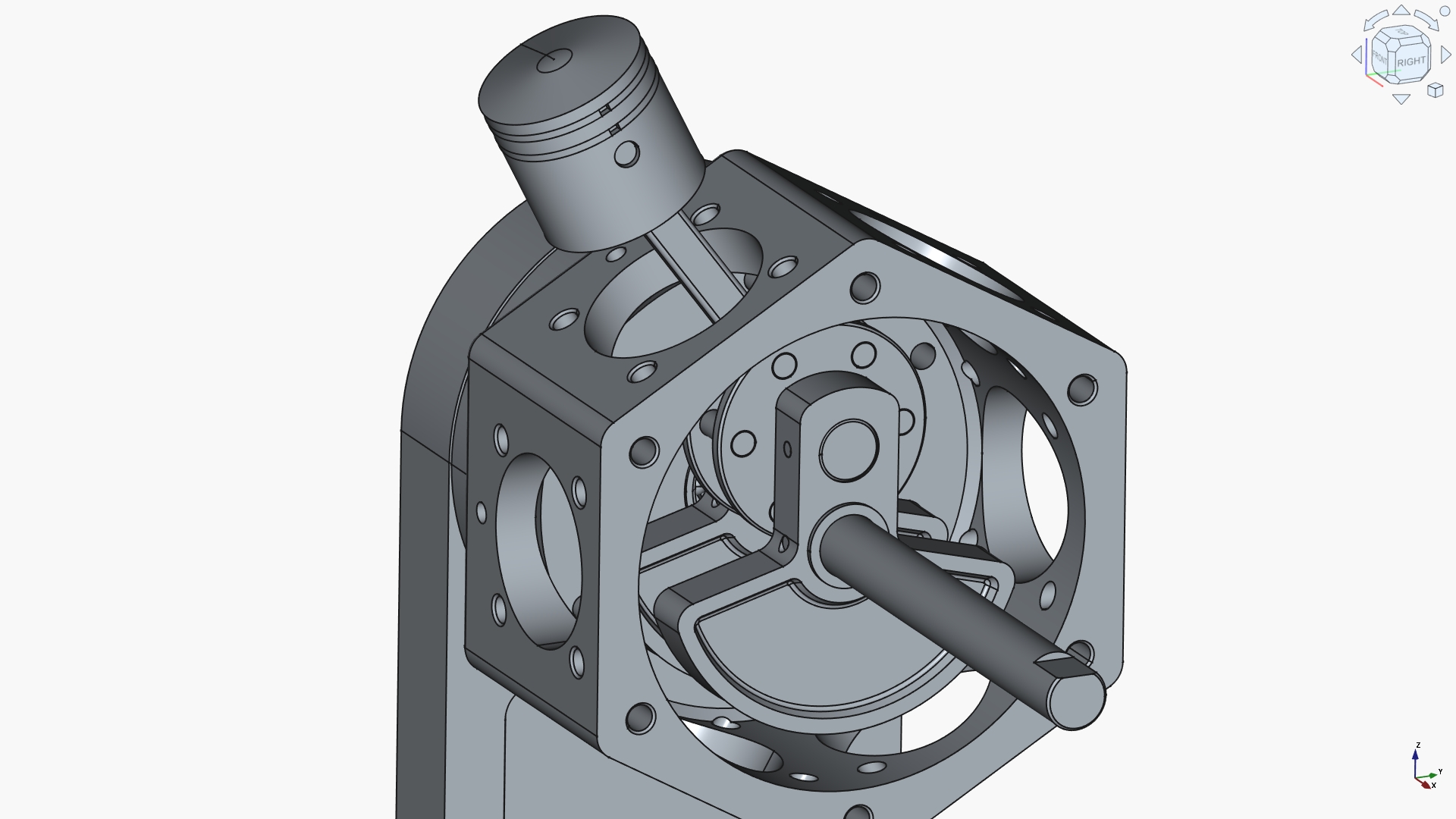

This assembly wasn’t easy or quick thing to do with FreeCAD. Getting pistons to their cylinders was quite achievement compared to the fact that the assembly workbench is a rather new feature in FreeCAD. You can’t for example duplicate parts with linear patterns, and that makes the assemblies somewhat arduous.

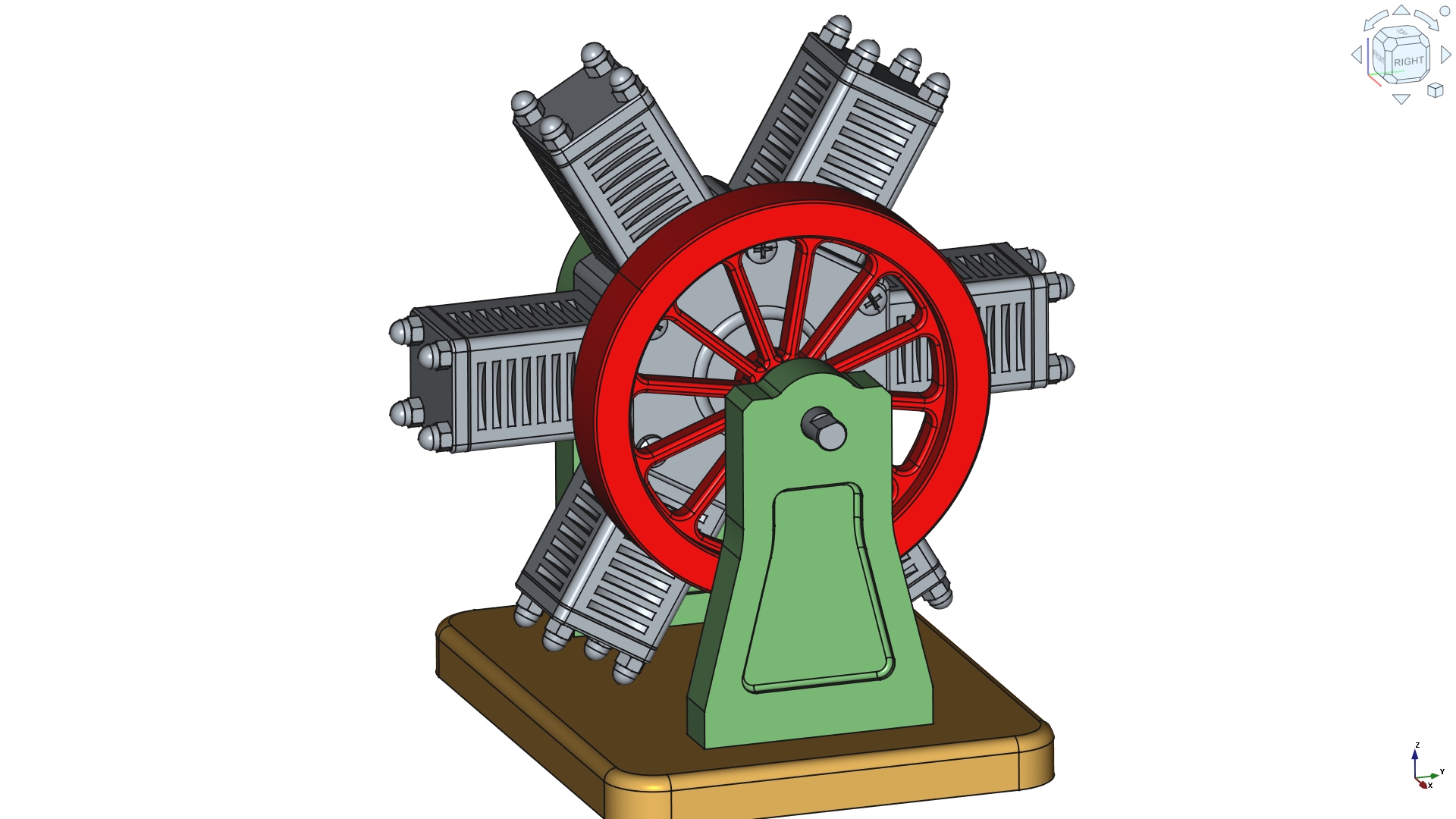

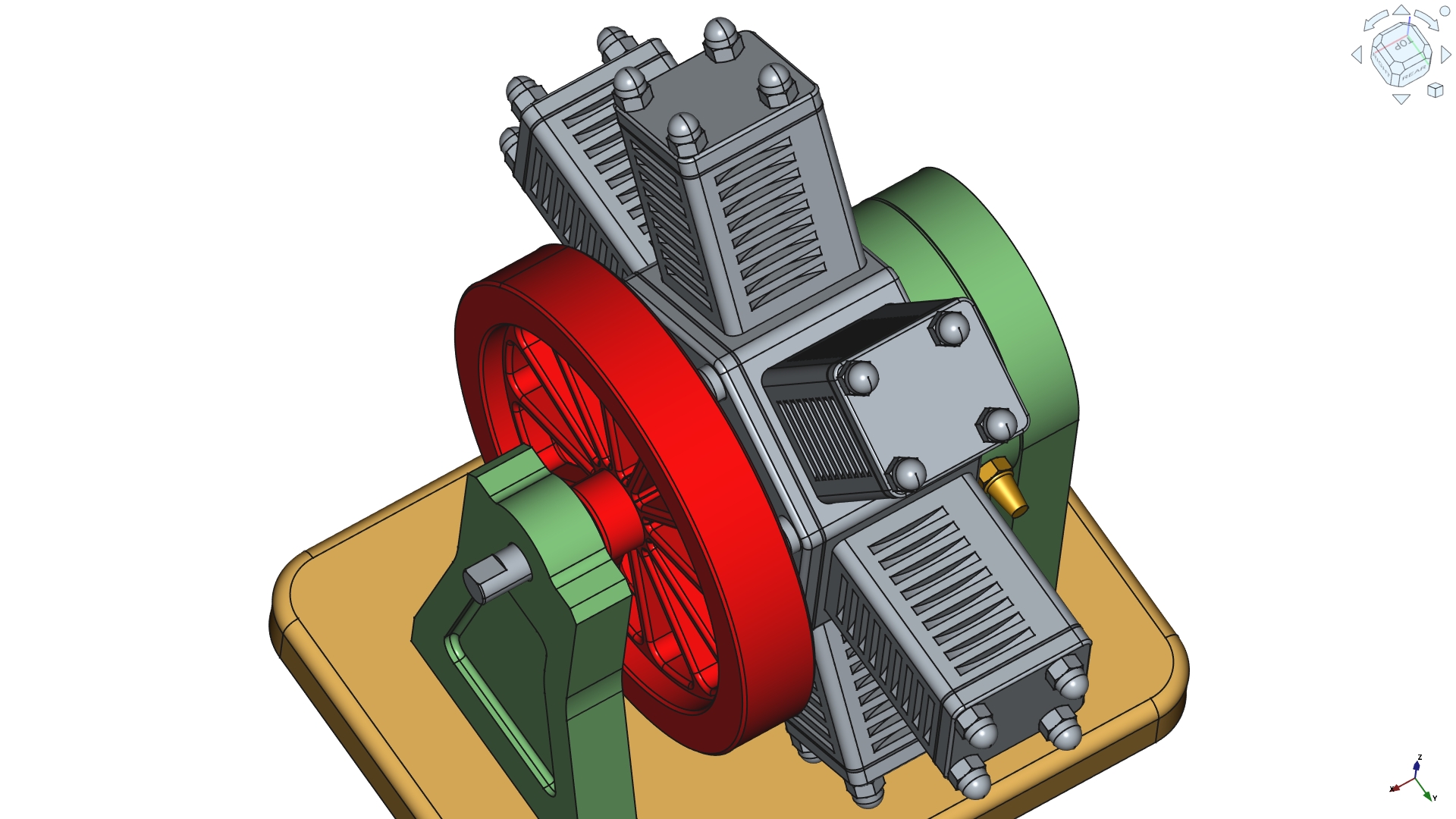

The assembly consists of 7 subassemblies and 34 different parts.
