Software: FreeCAD 1.1.1
Modeller: Vesa Lampinen
Source: Model Engineering website

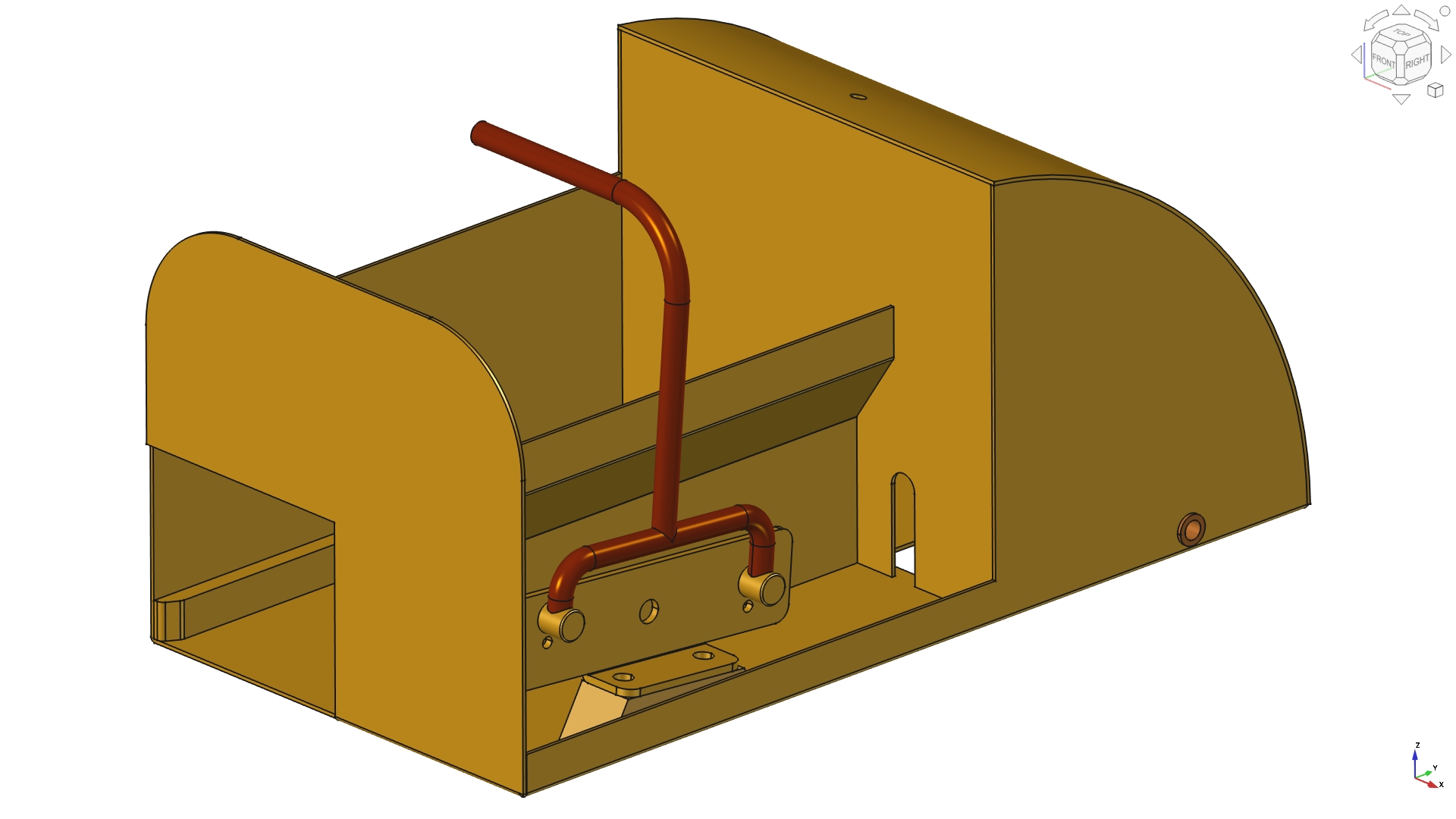

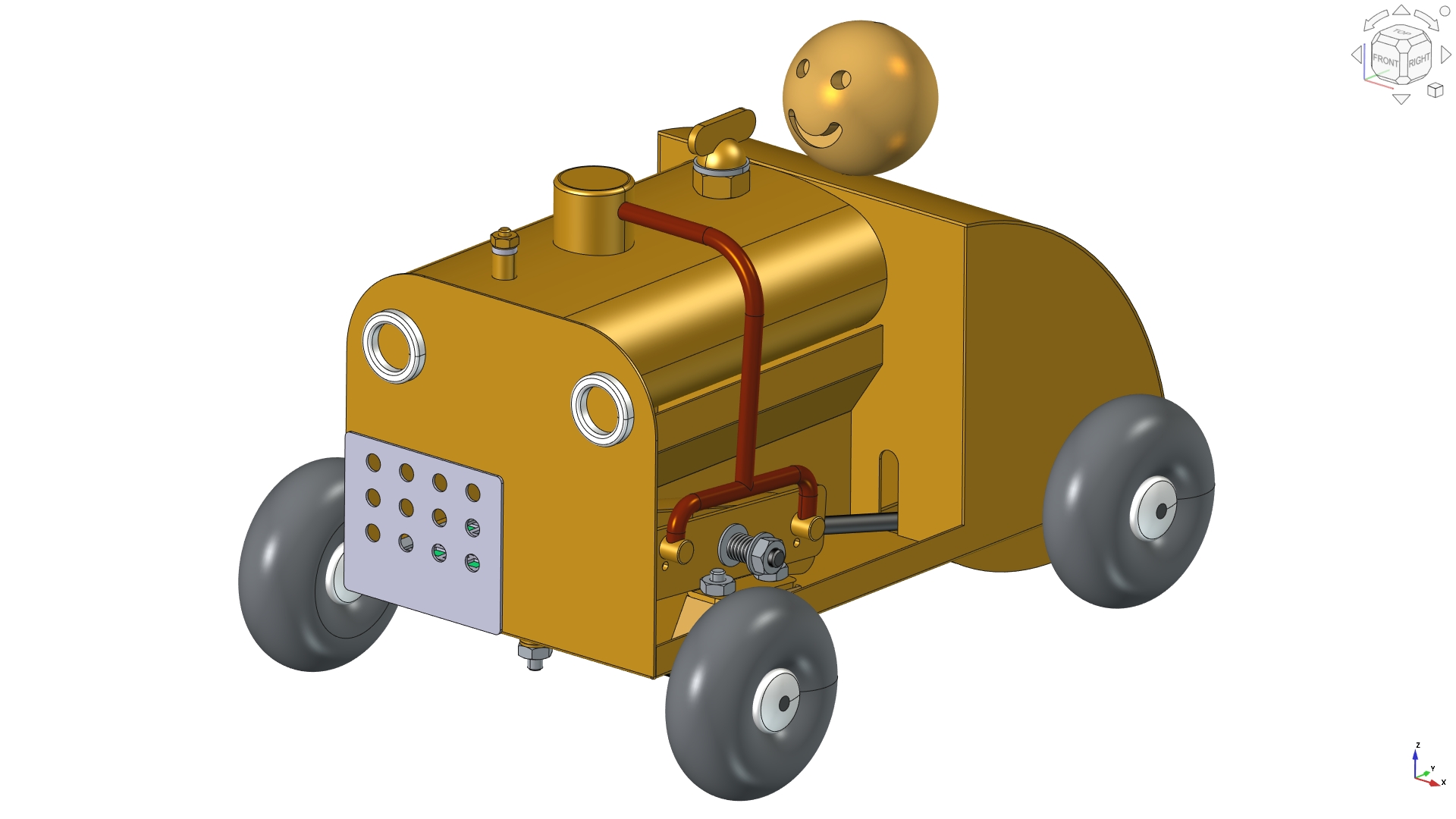

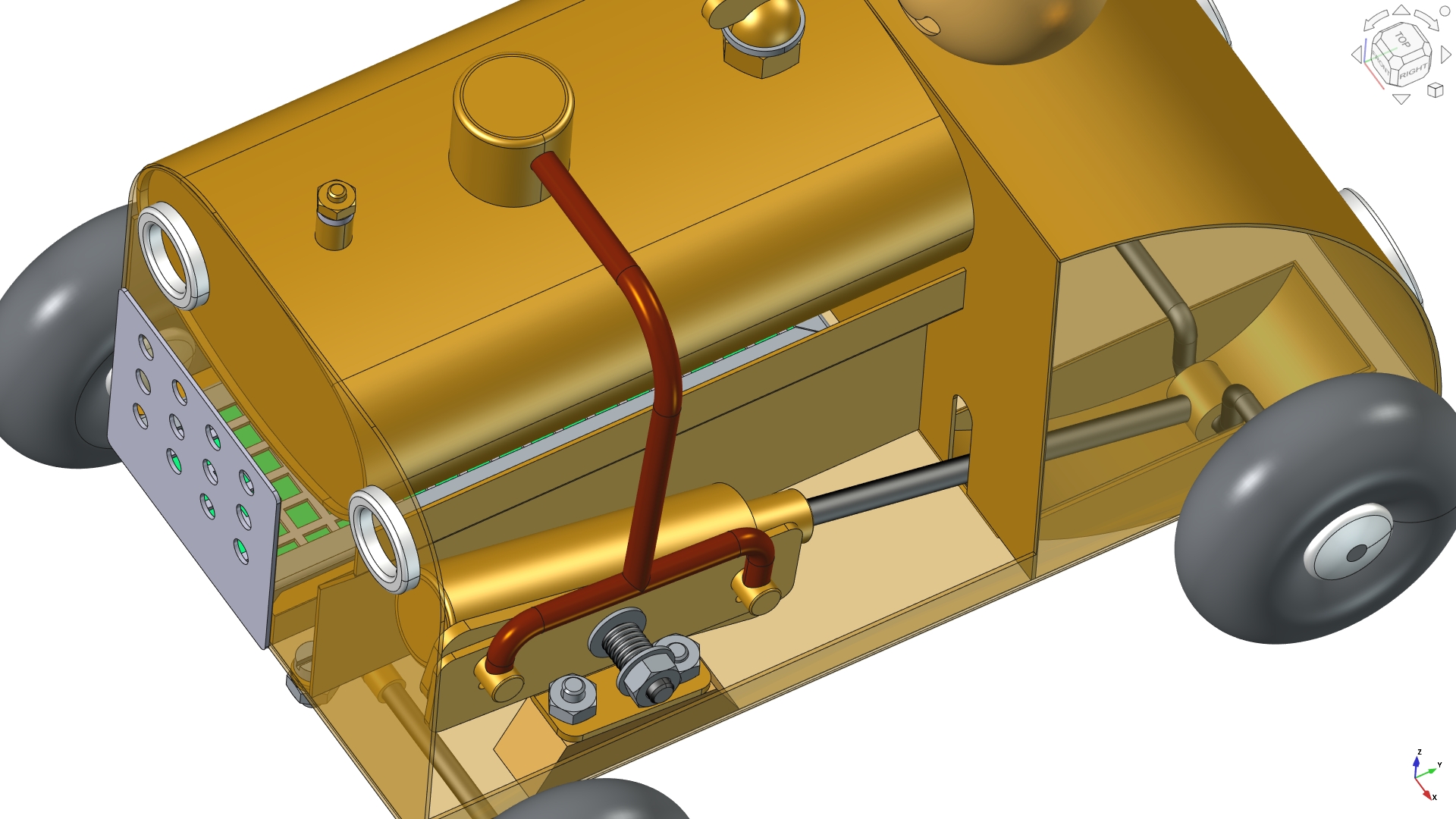

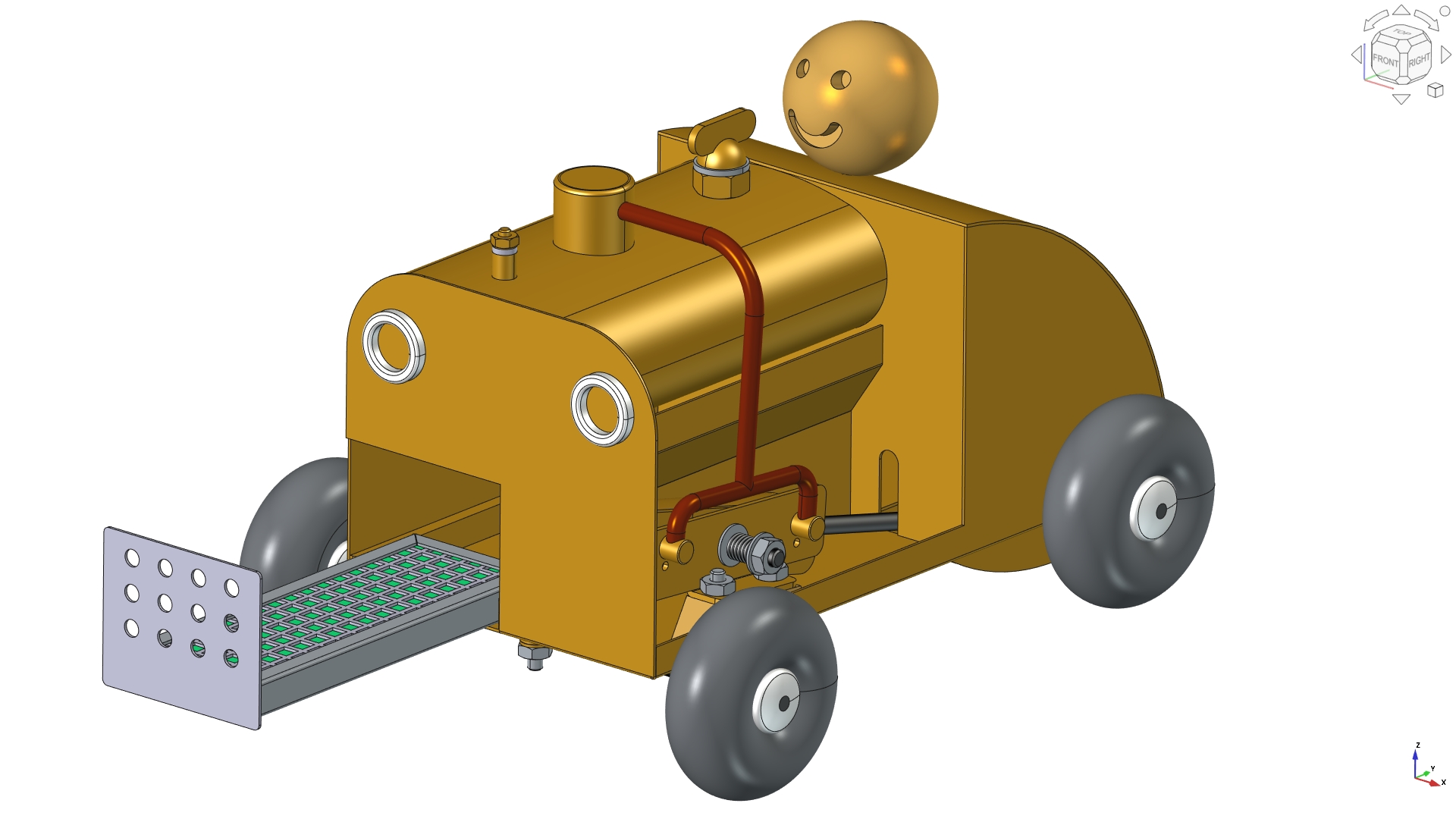

A first assembly with sheet metal parts. There is a FreeCAD addon called “SheetMetal Workbench” that works like a charm.

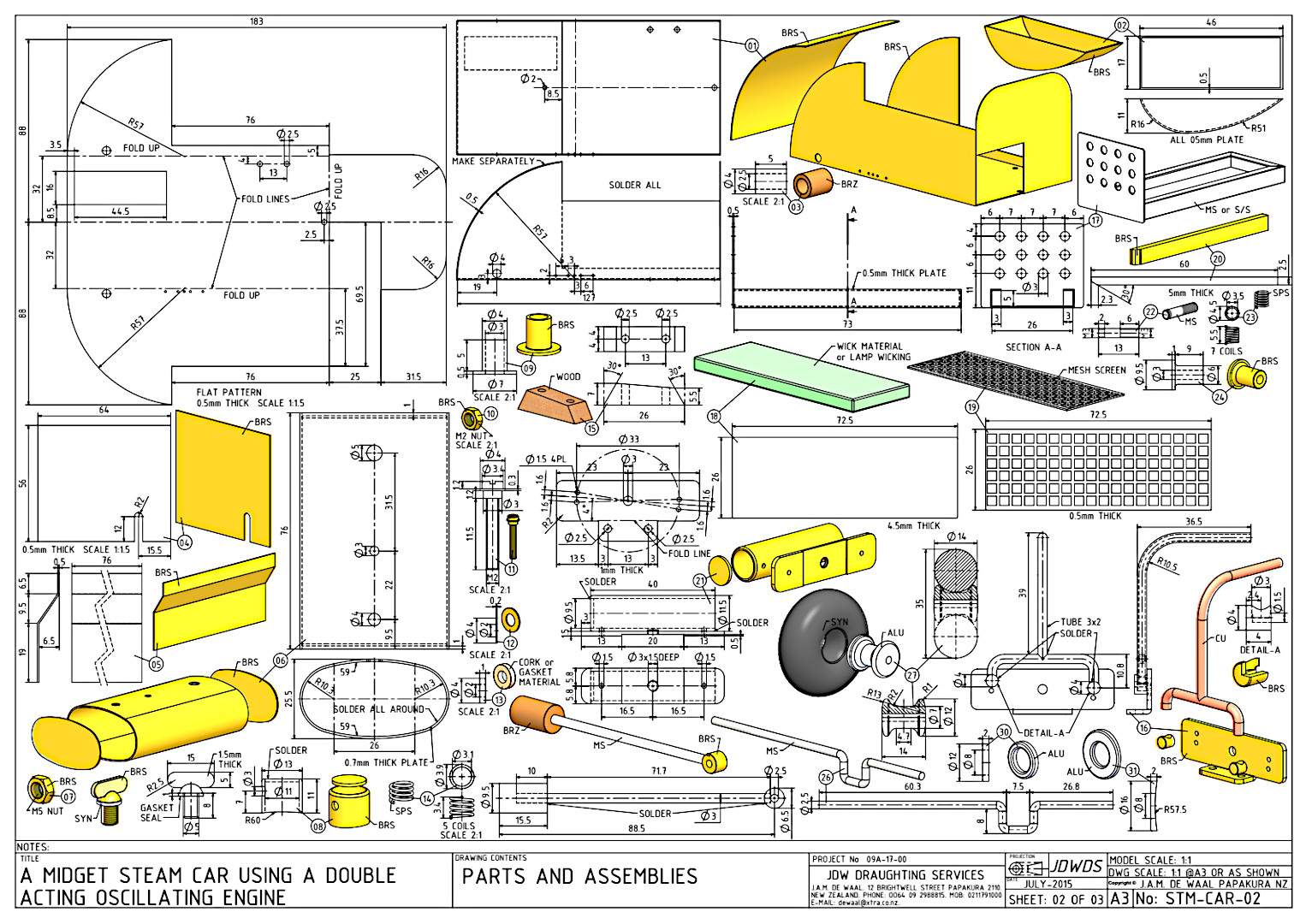

The assembly needed repairs. One screw had too short, a rectancle hole in the bottom was too small and technical drawings lacked some measurements. But then again, those flaws also made it a more challenging exercise.
The assembly consists of 6 subassemblies and 54 different parts.
