Software: FreeCAD 1.1.3
Modeller: Vesa Lampinen
Source: Model Engineering website

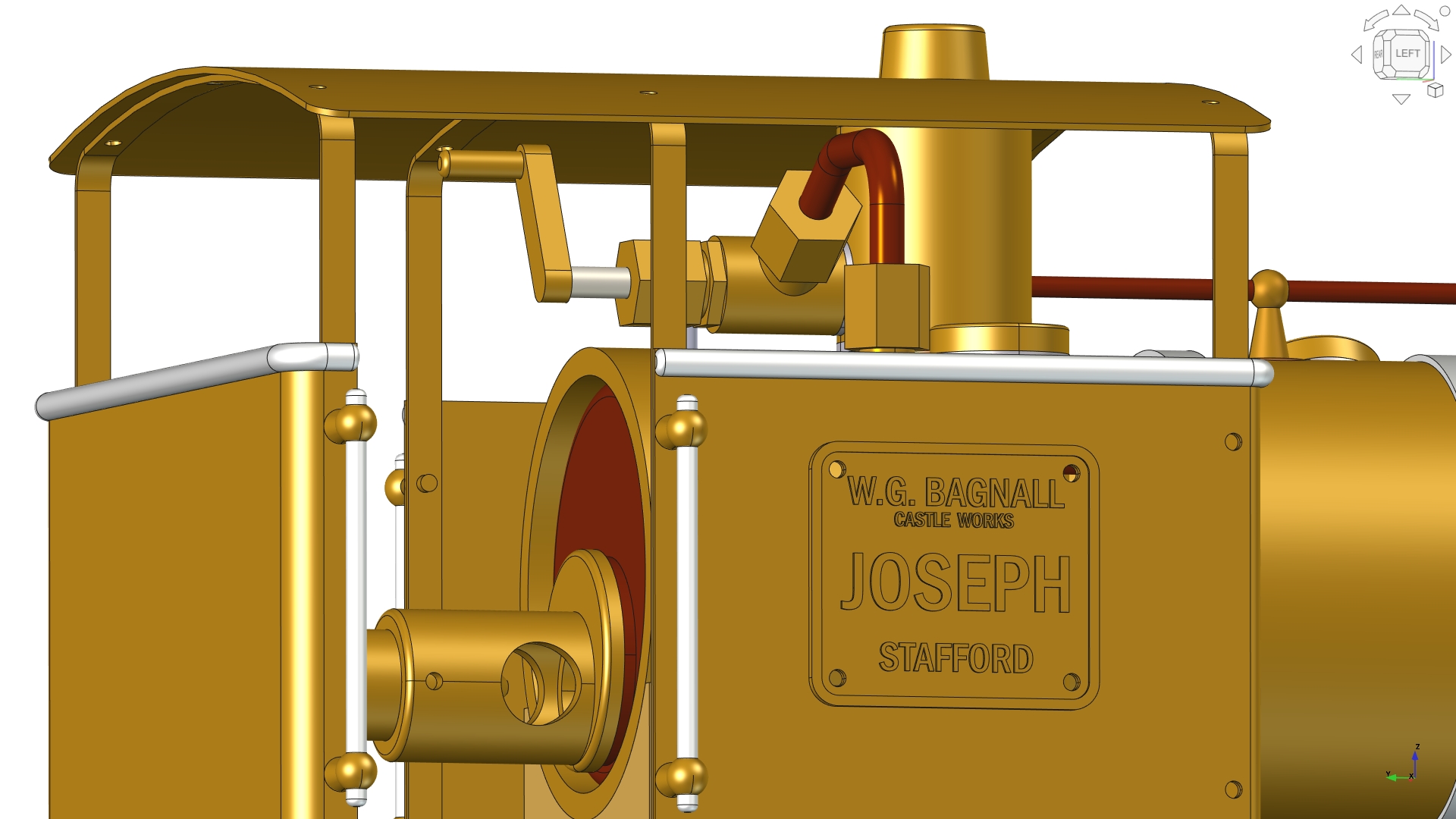

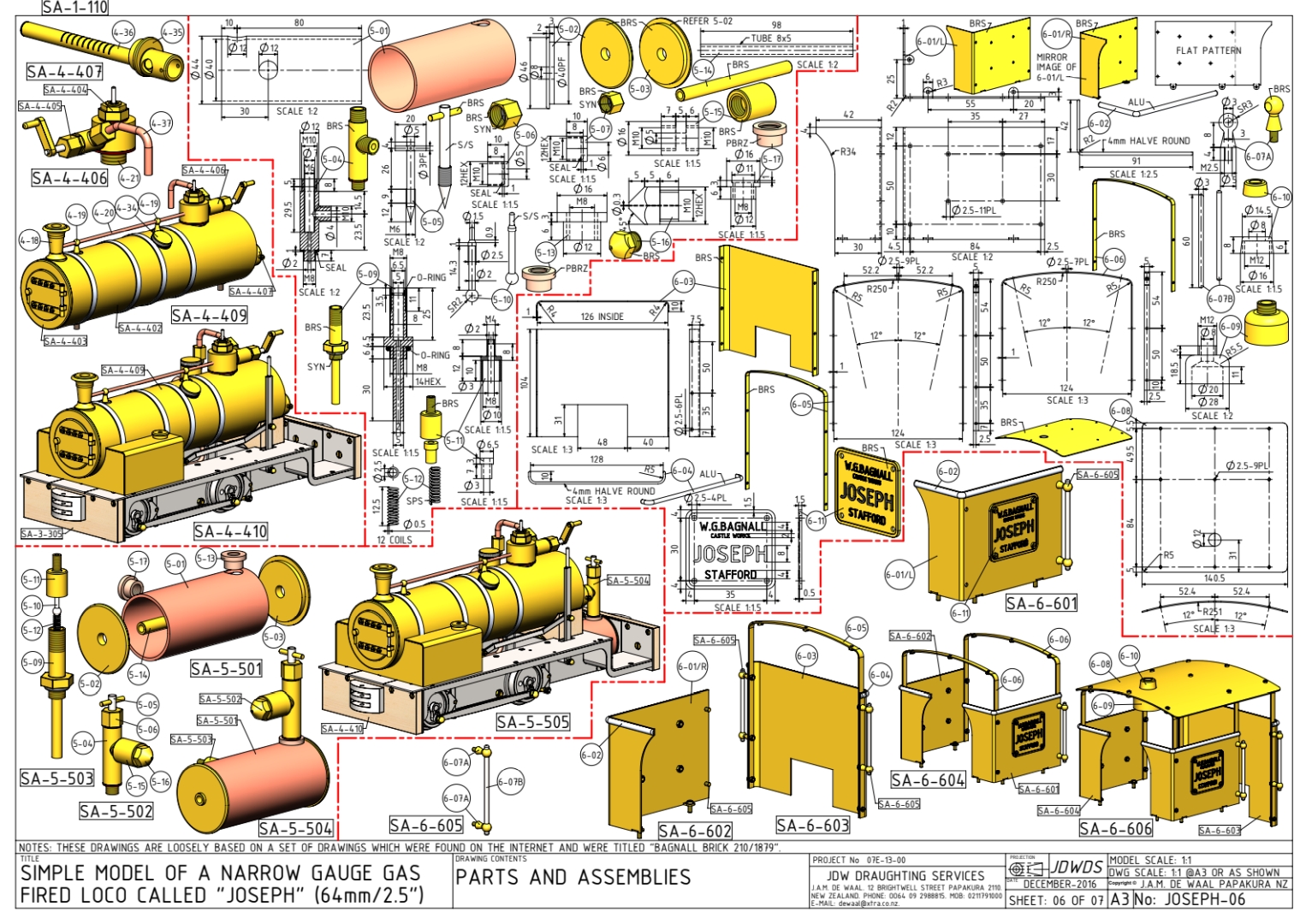

A technical drawing lists 123 different parts for this model, excluding the nuts and bolts. So this assembly was a test to how few parts this locomotive can be modelled with. Thus many parts were combined as one part. Since this assembly was made for a viewing only, it didn’t need to work. No moving parts here.

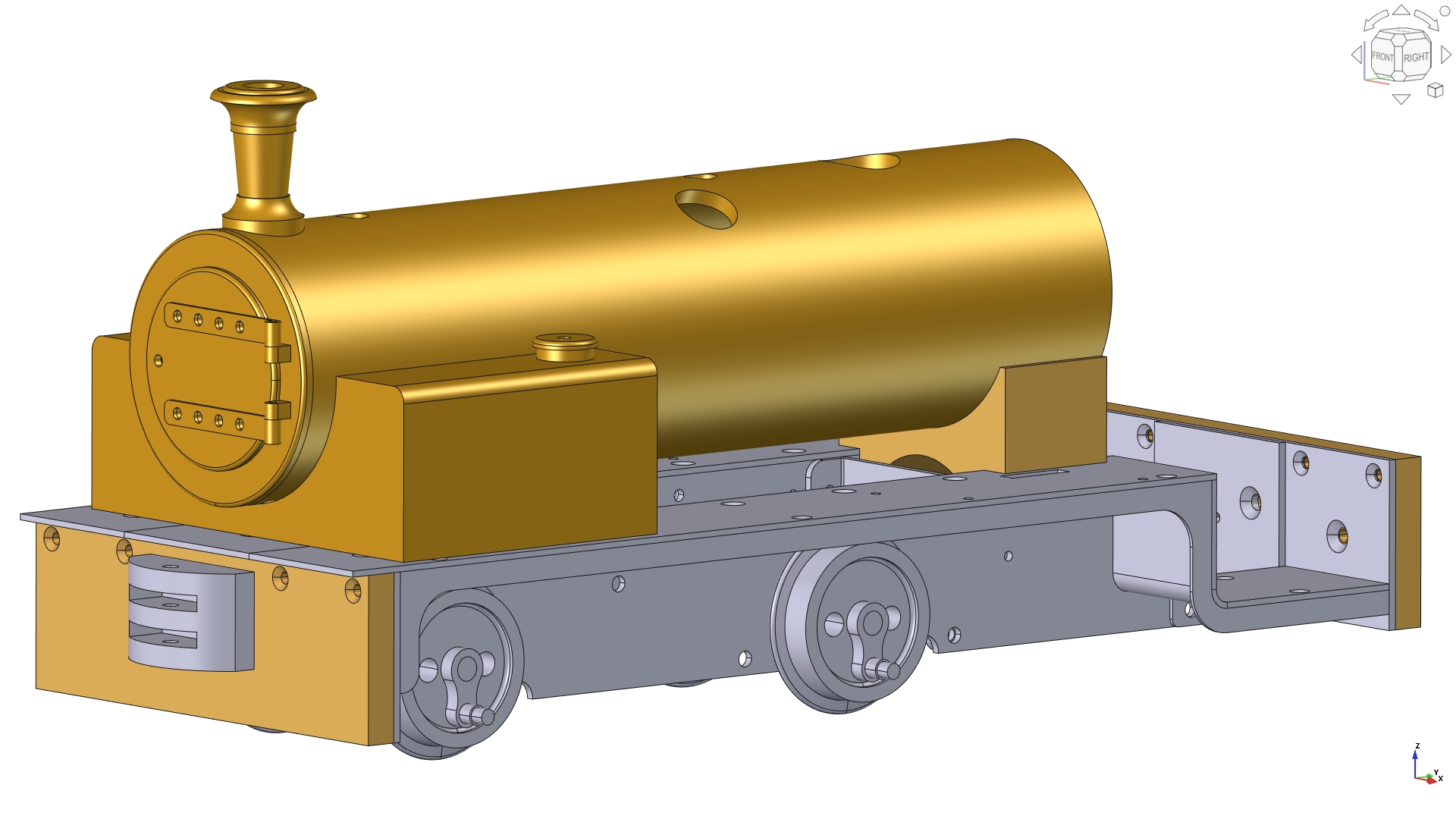

Naturally, almost all the parts that can’t be seen, weren’t modelled …nor the nuts and bolts.

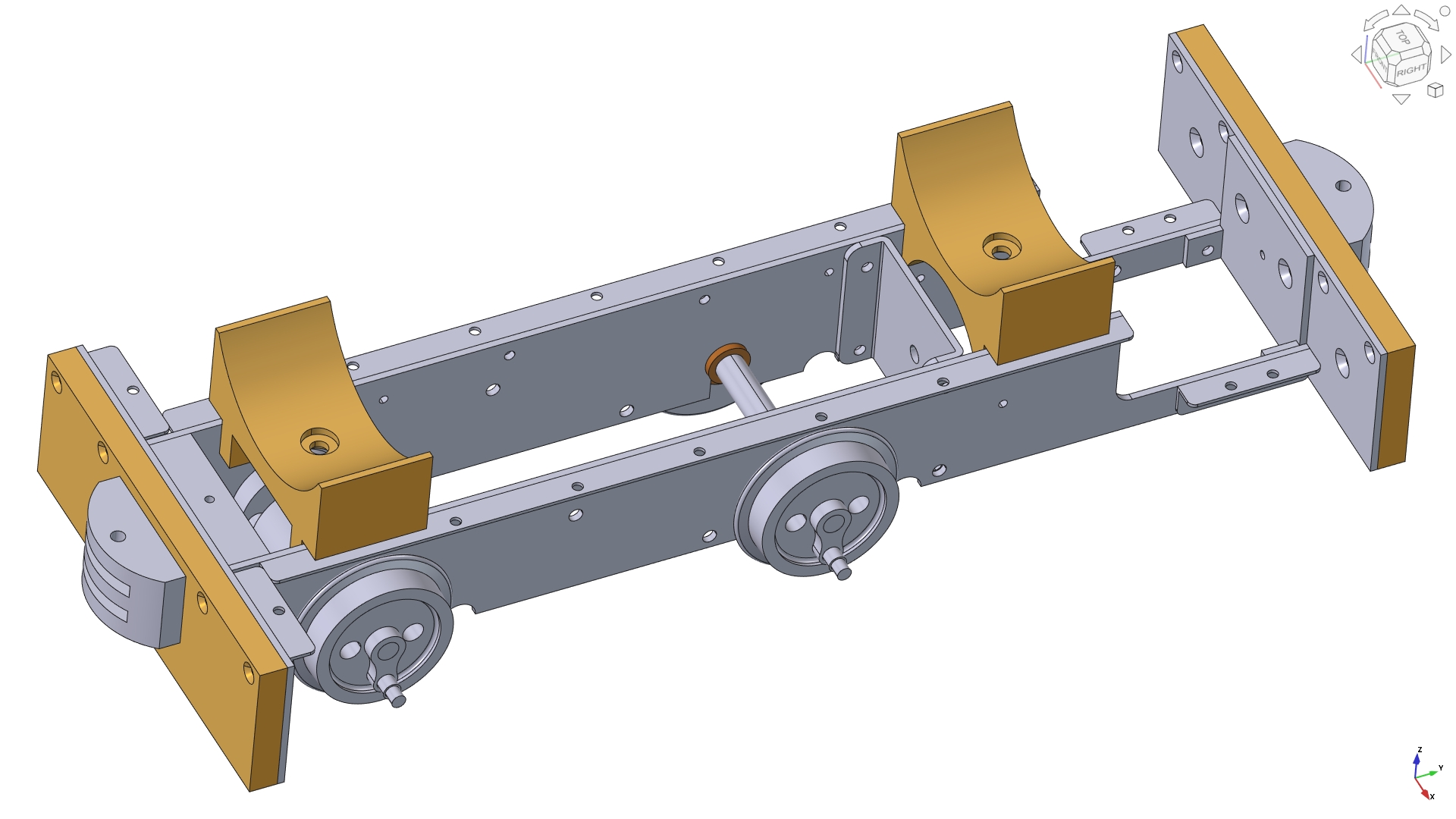

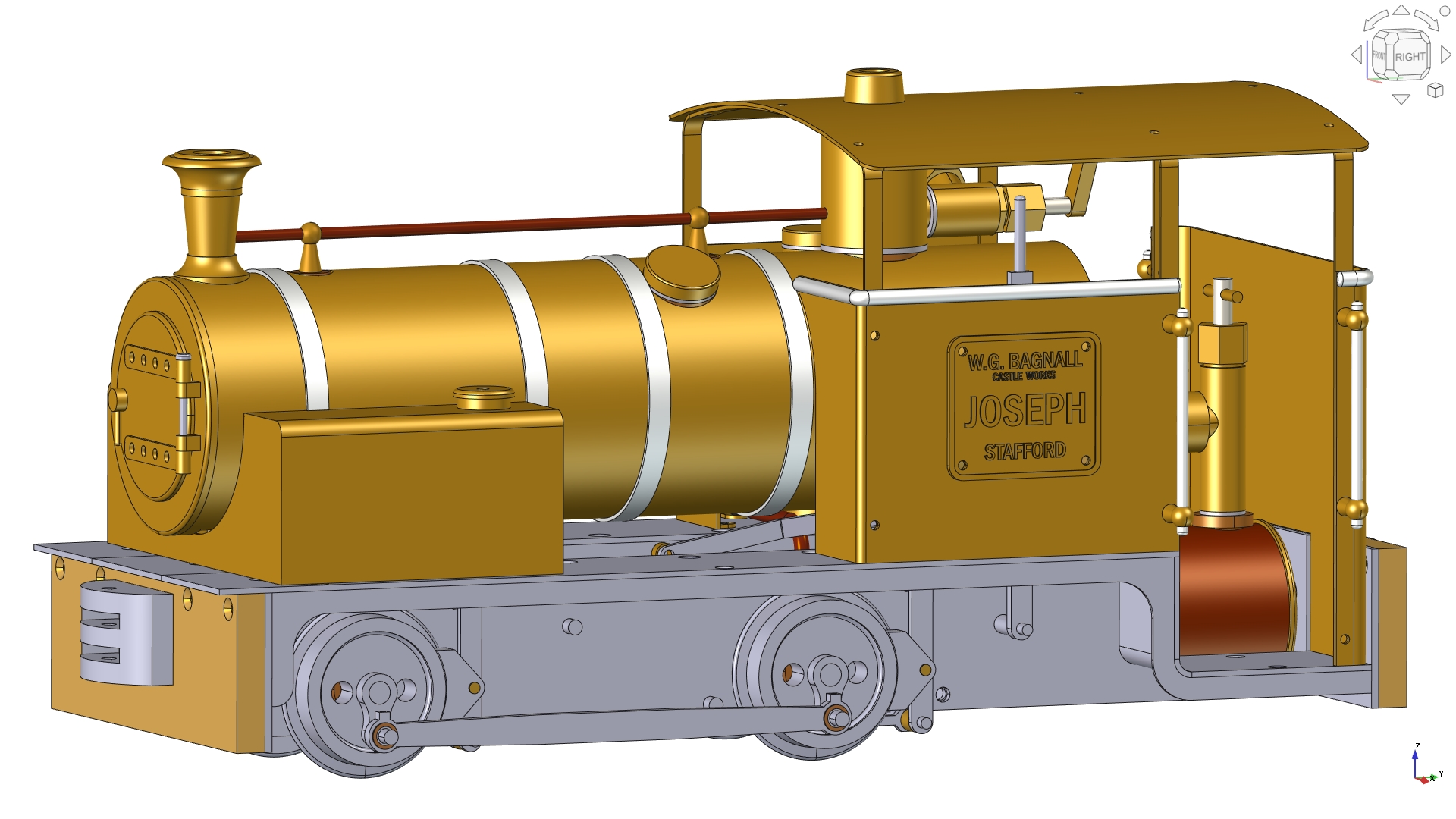

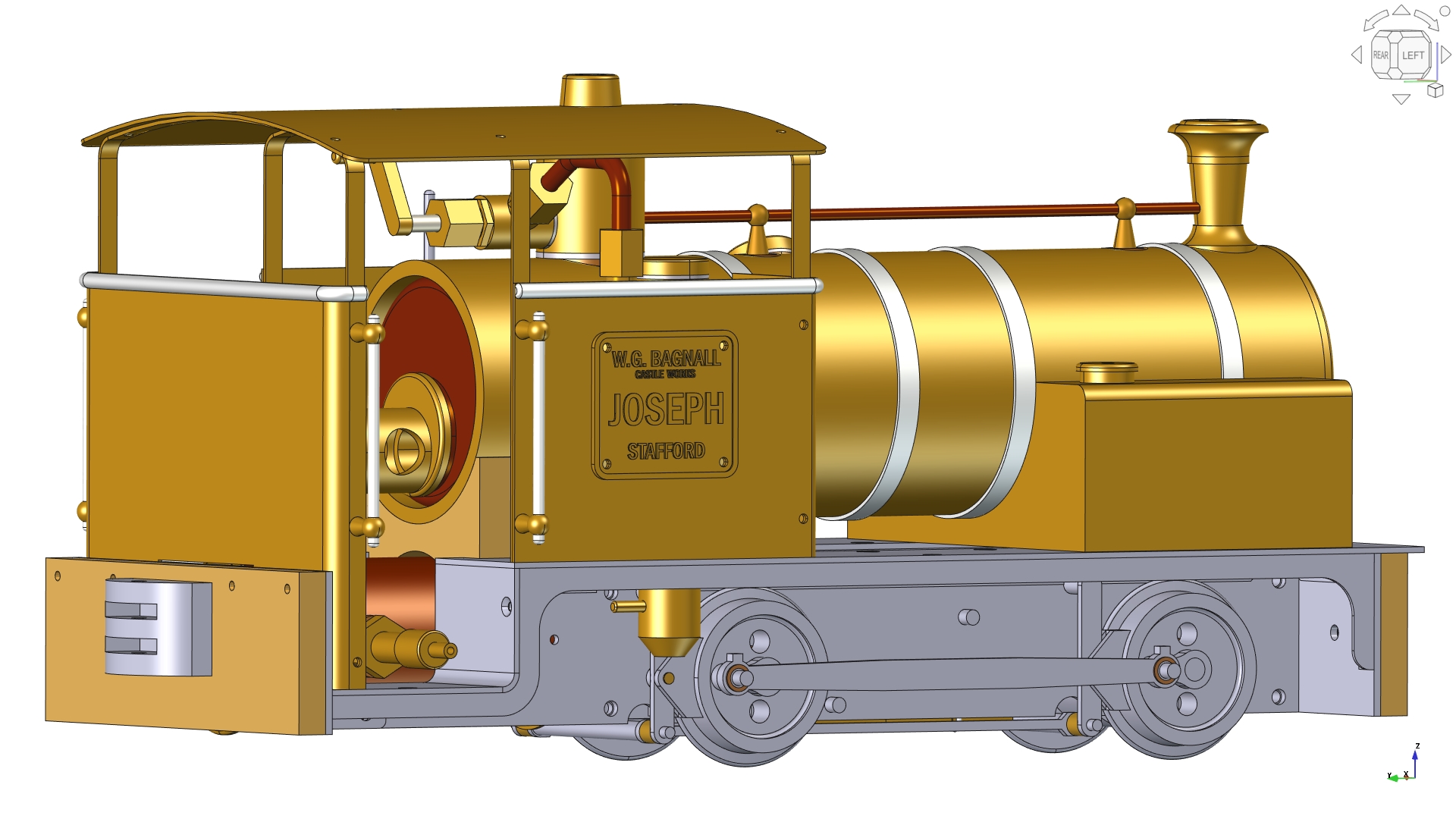

The assembly consists of 79 different parts.
