Software: FreeCAD 1.0.2
Modeller: Vesa Lampinen
Source: Inventor Wizard

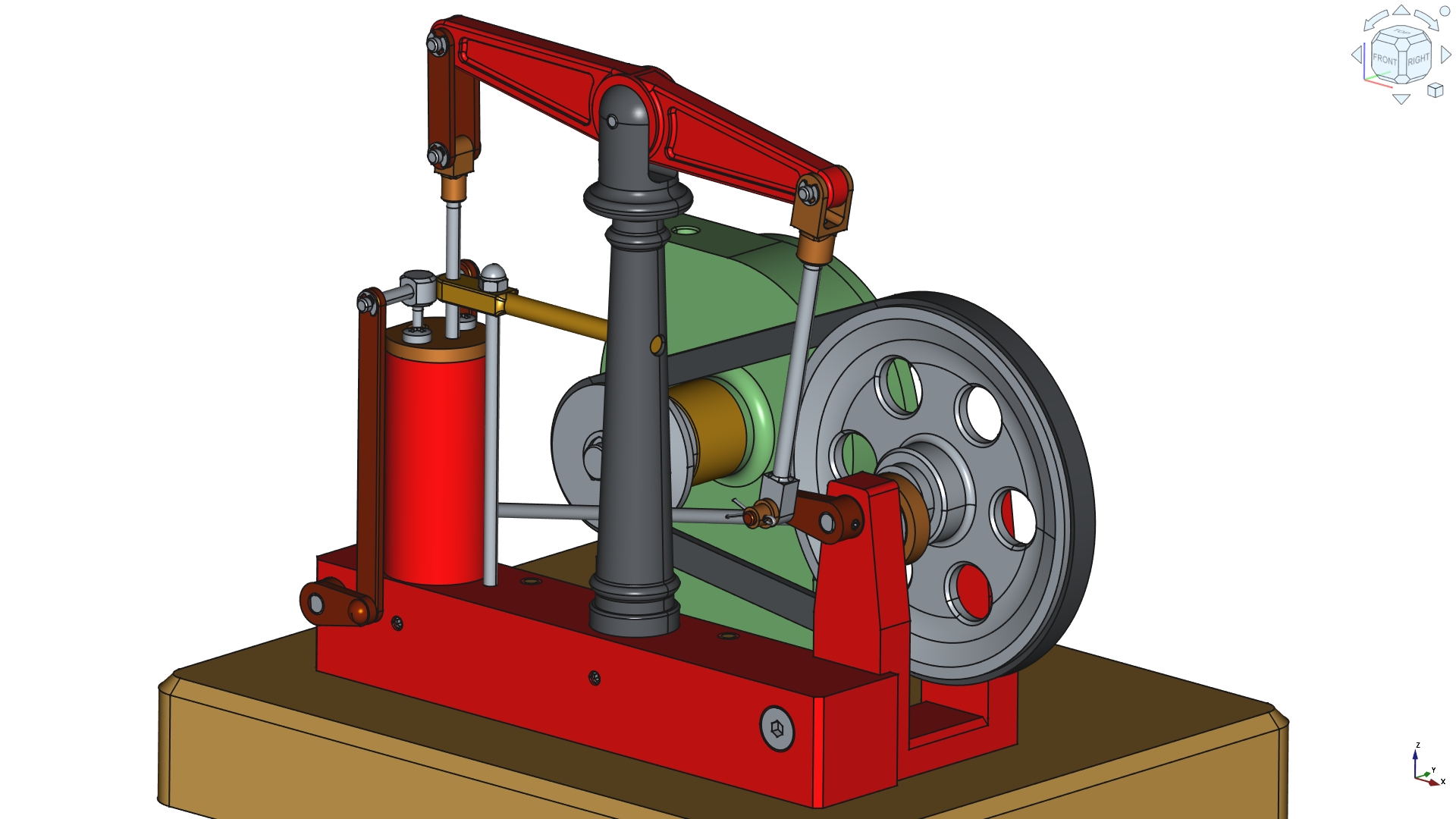

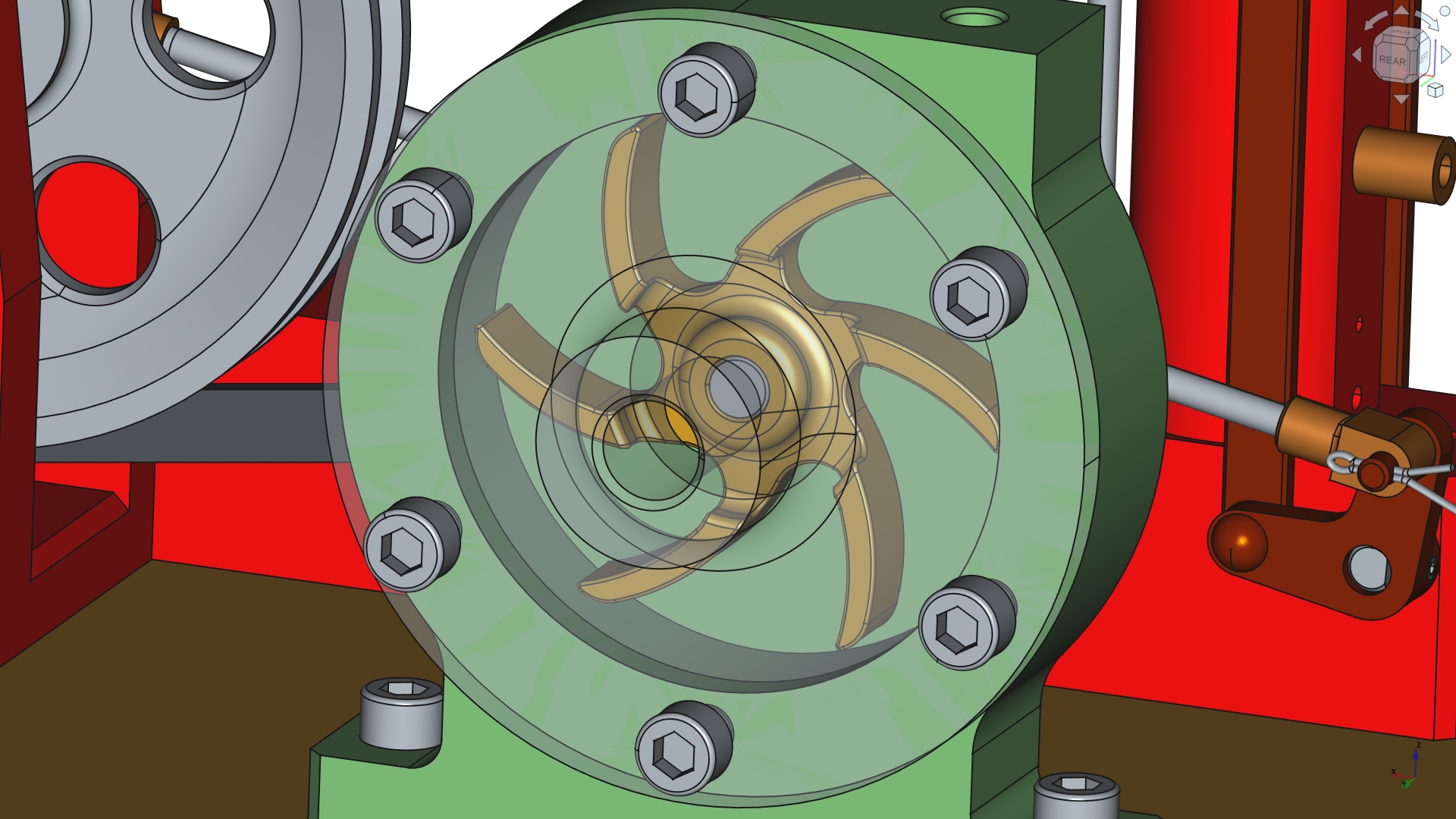

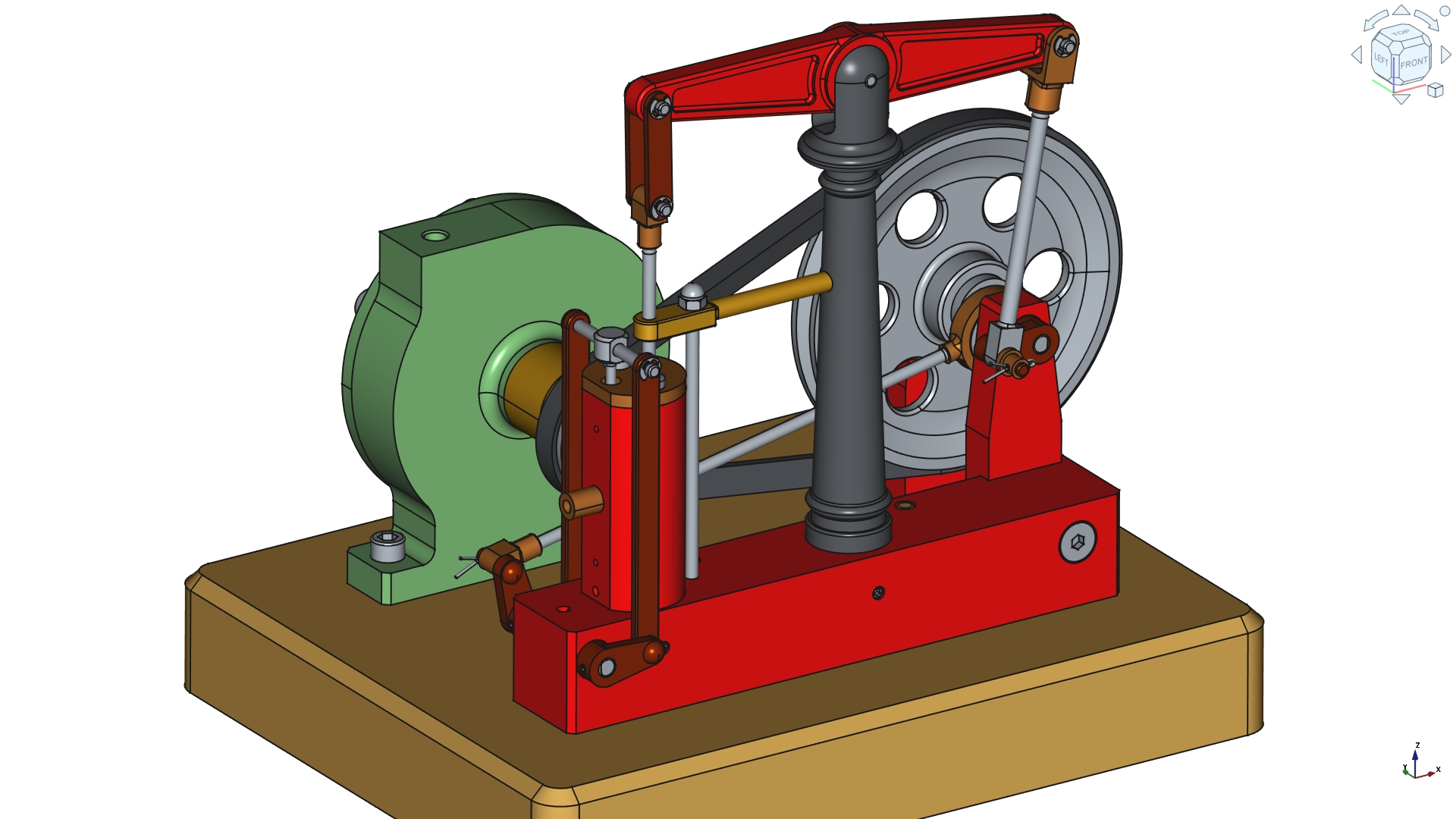

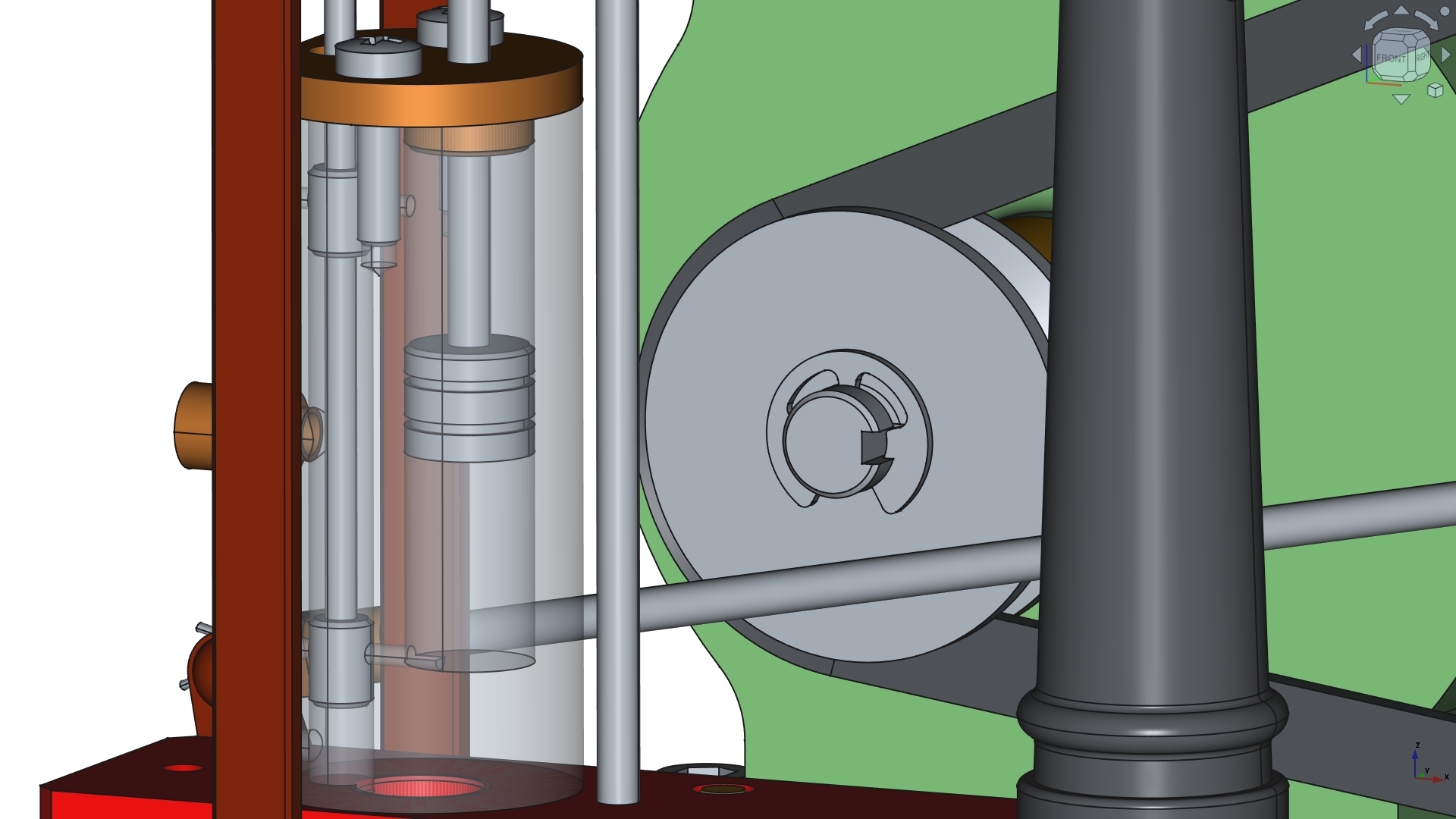

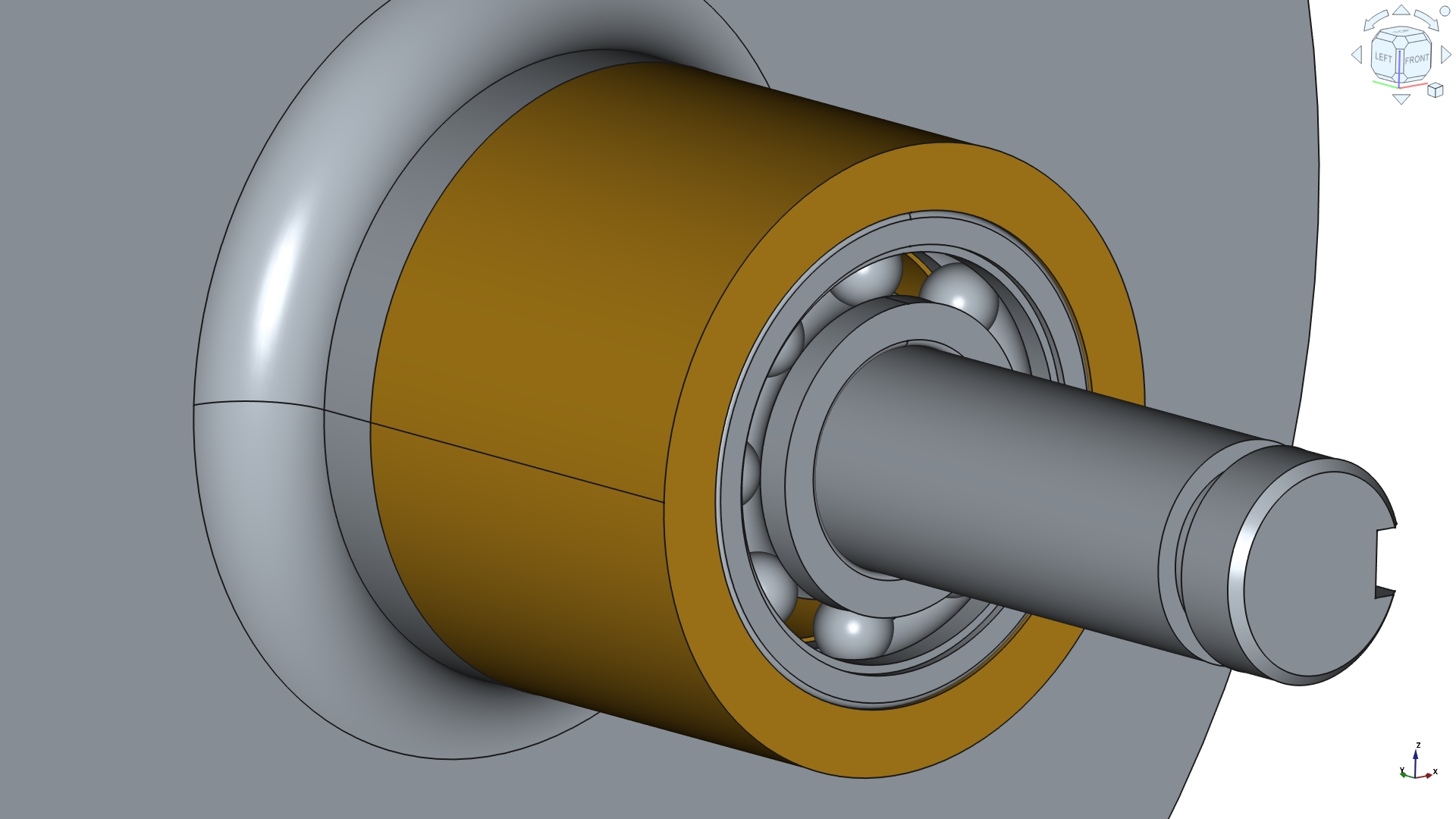

This beam engine was easier to assemble that the six cylinder radial engine, since any of the joints didn’t break the whole thing. It’s a good practice to add as many unmoving parts as possible to one subassemby in FreeCAD. That way a main assembly doesn’t end up too complex and heavy to maintain.
The assembly consists of 11 subassemblies and 58 different parts.
