Software: FreeCAD 1.1.1
Modeller: Vesa Lampinen
Image source: Fallout Wiki

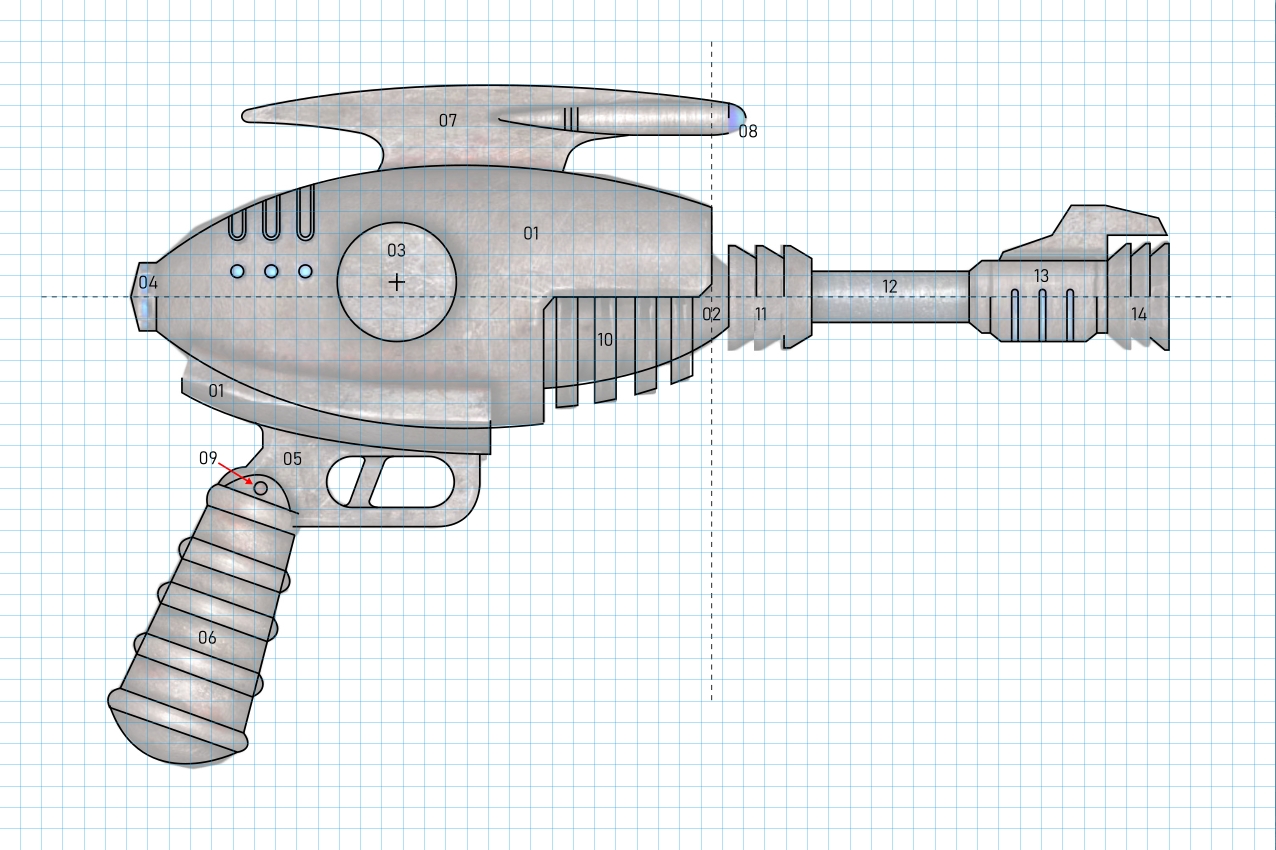

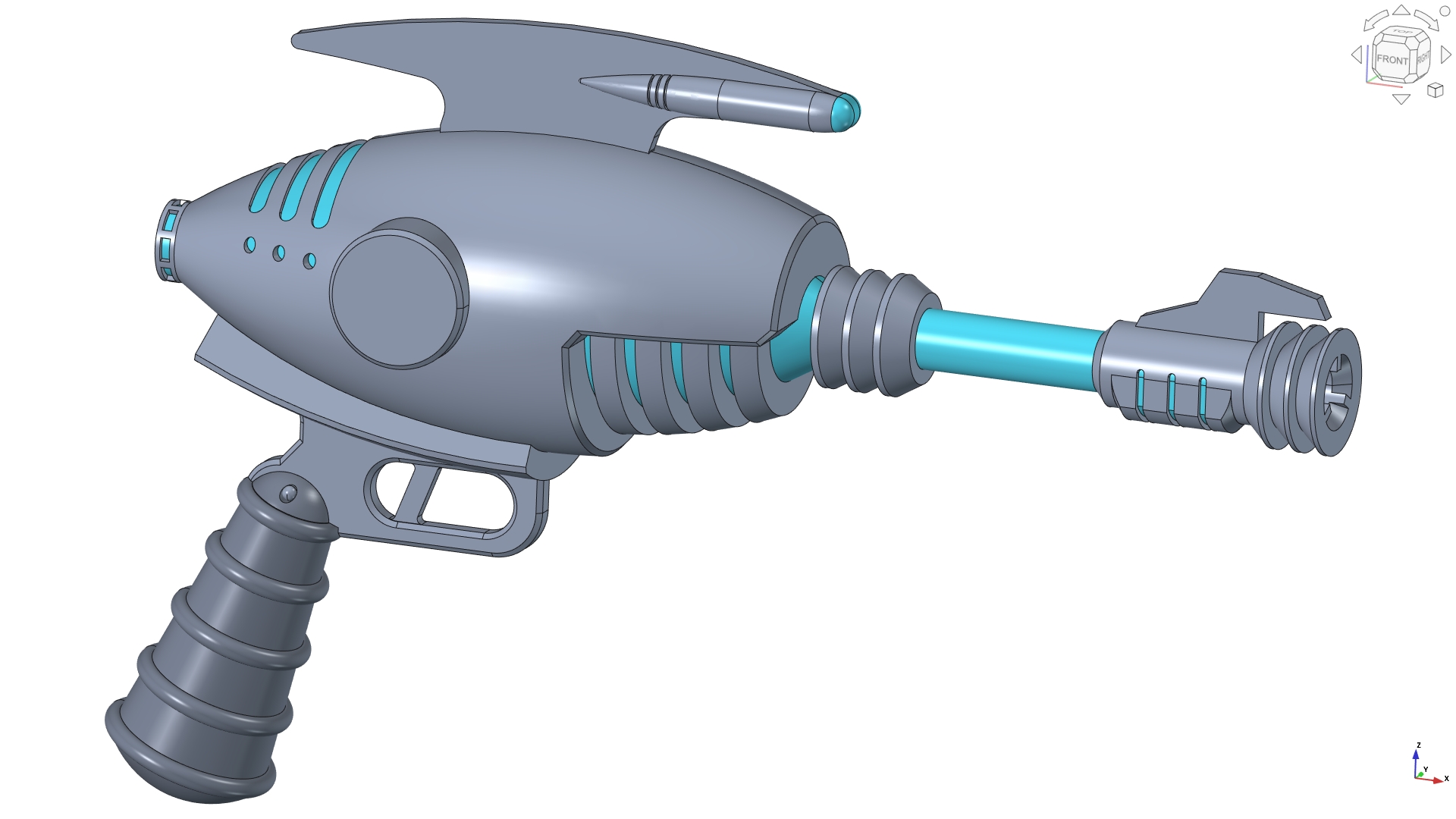

The main reason for modelling of this alien blaster was to test whether is easy to model something using only a 2D bitmap image. The source image was imported to Inkscape and a line drawing was done with that. One square in the drawing’s grid equals to 5 x 5 millimetres.

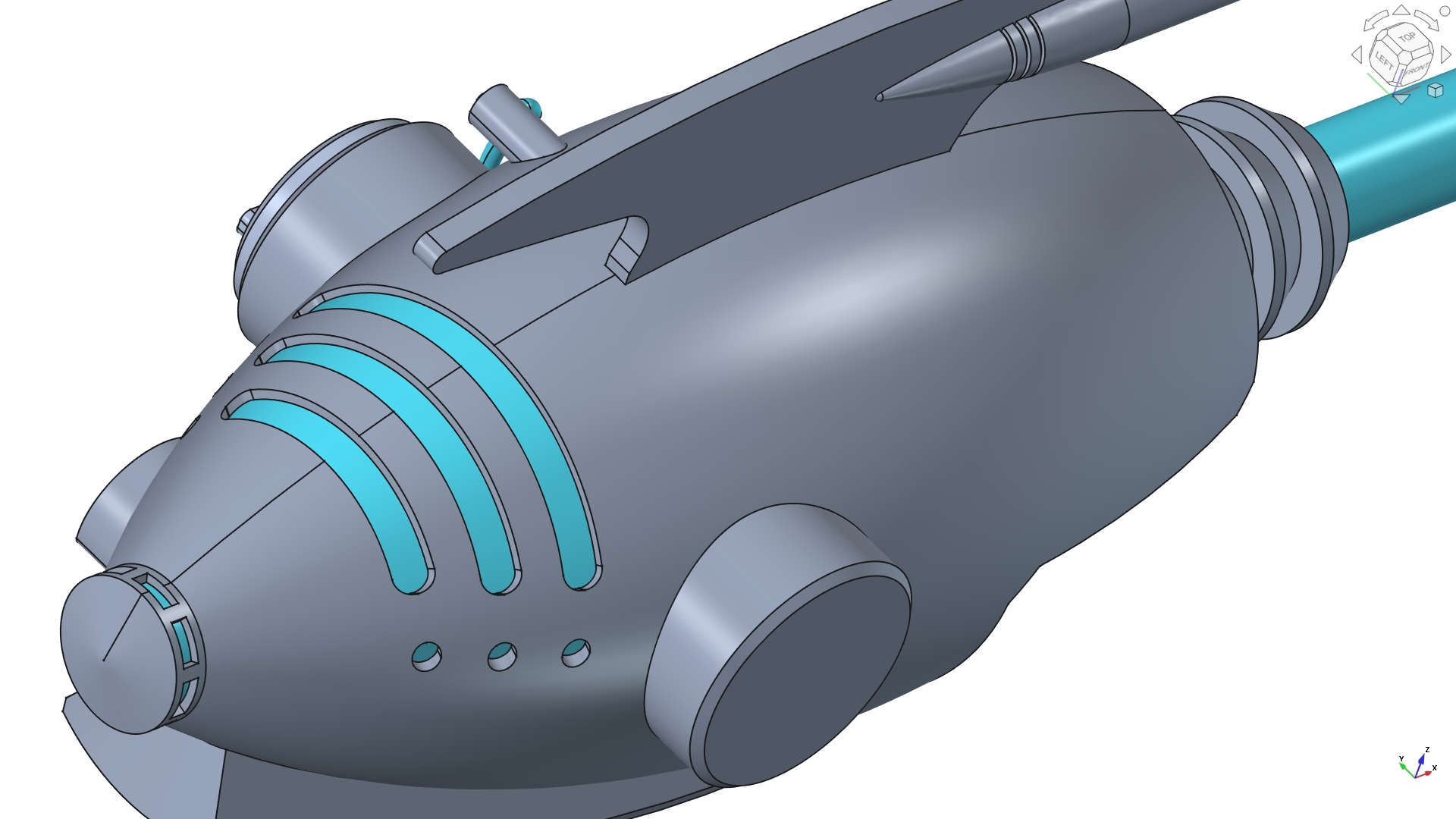

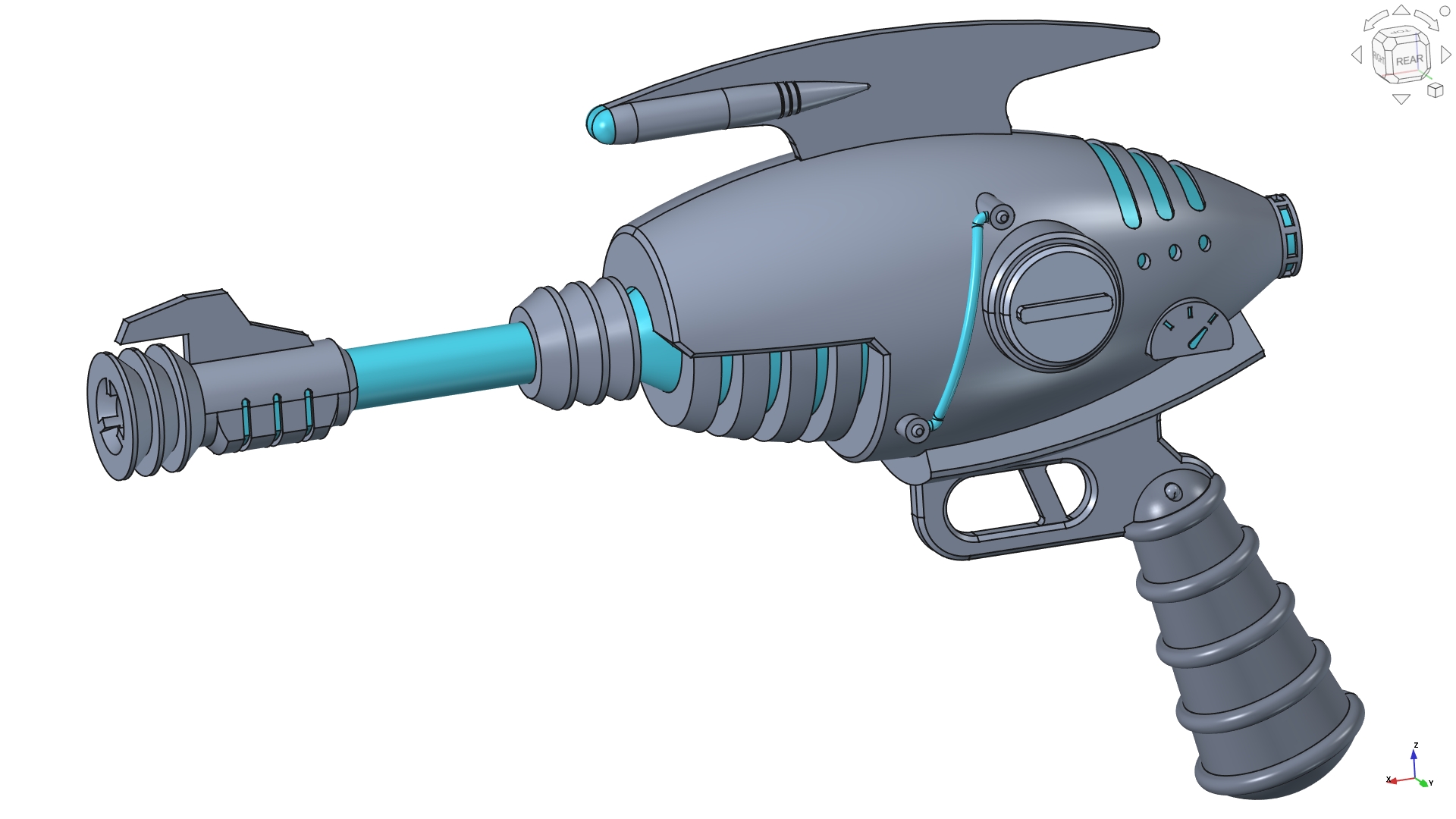

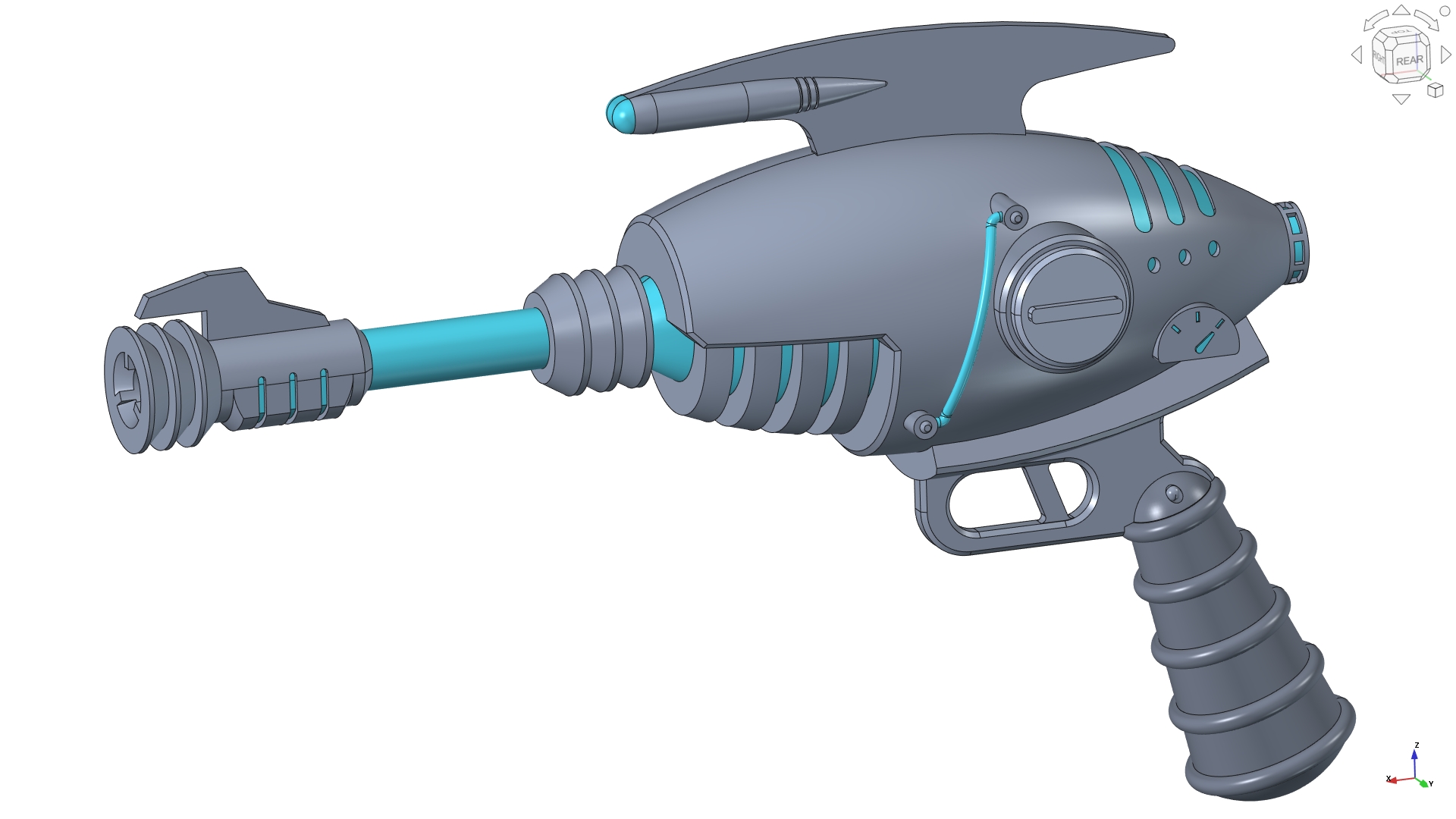

The details on the opposite side were modelled approximately from other images since there wasn’t an exactly same sized bitmap for that side.

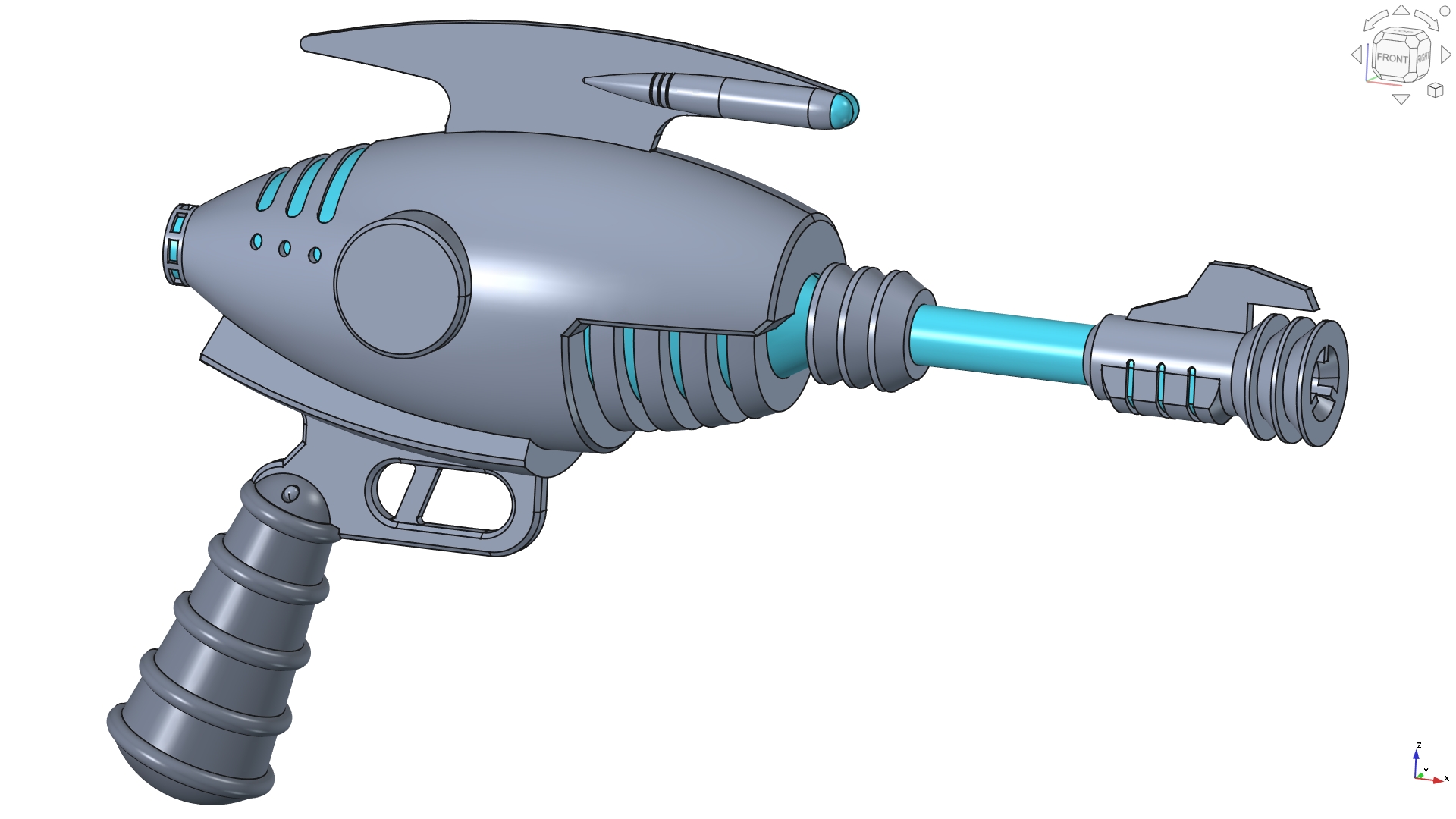

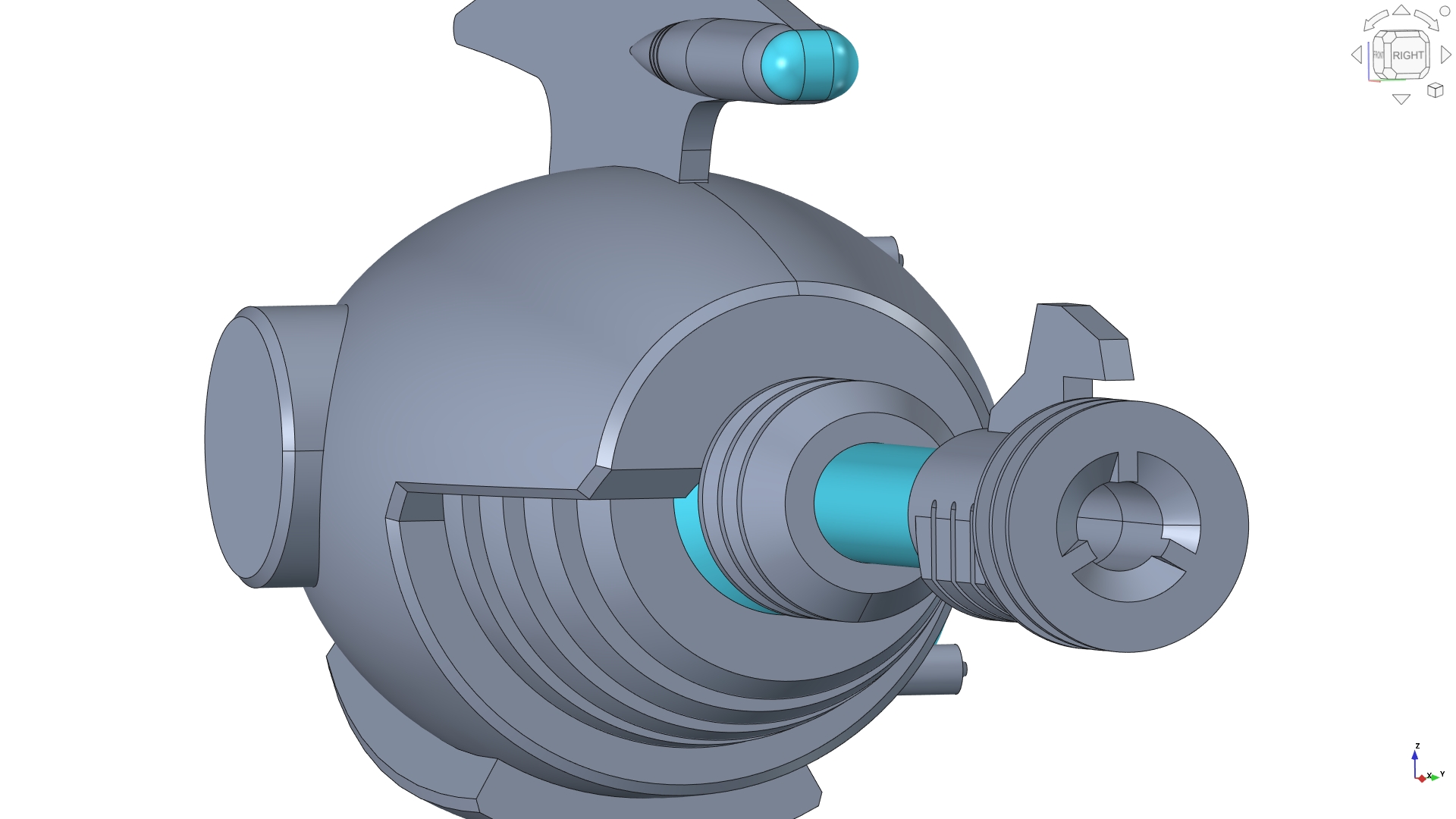

The assembly consists of 18 different parts.
